ABB PVS-100 User Manual

- 67 -
000833BG
5 - Installation

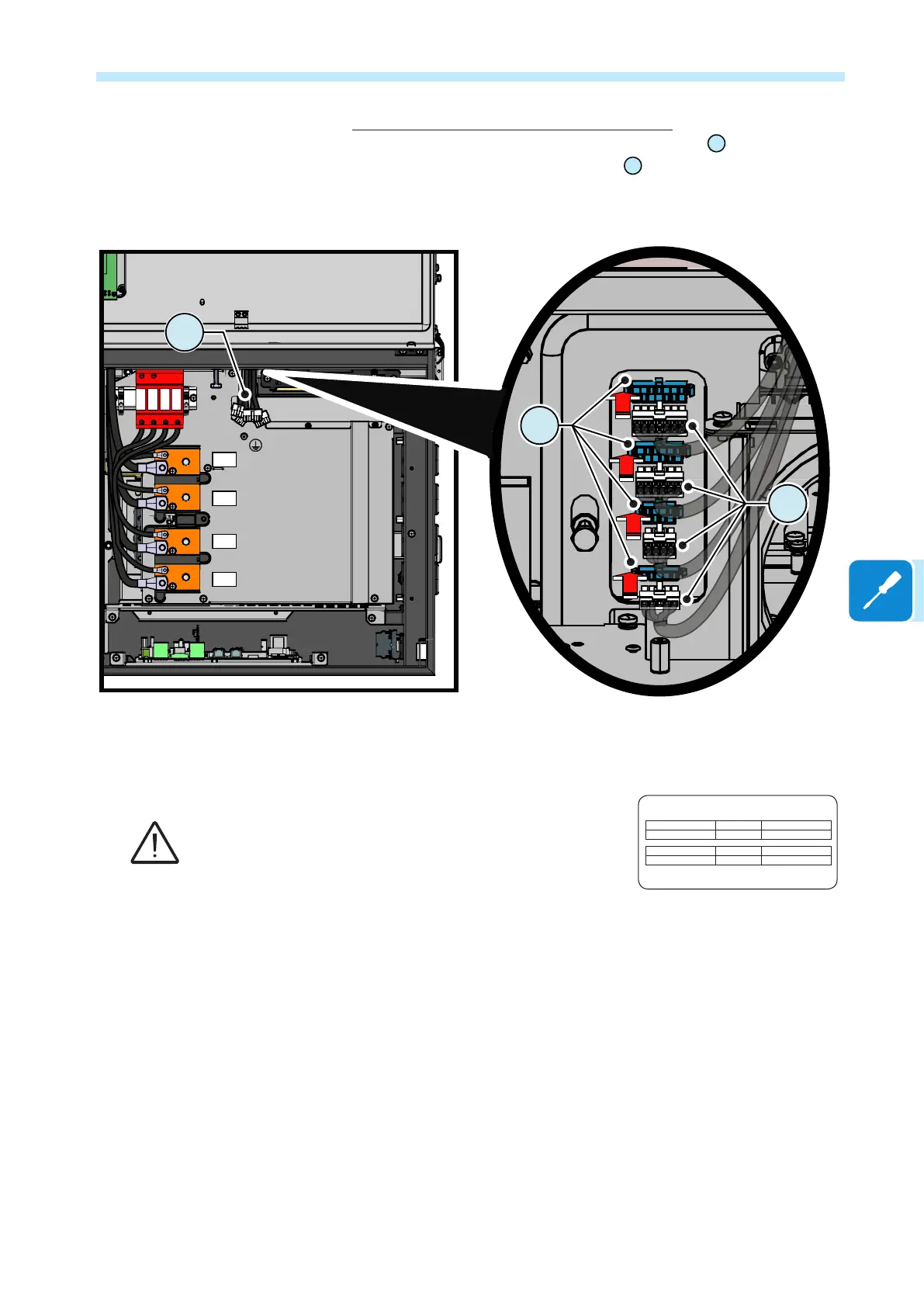

Connection of the signal interface connectors:
• Connect the signal interface connectors (male)
23
with the related
signal interface connectors (female)
30
starting from the last to the
rst connector.
R S T N
23
23
30
For connection to the network in South Africa.
According to NRS097-2-1 requirements, at the end of installa-
tion it is mandatory to apply the label at the left (supplied with
the inverter) near the power module regulatory label.
A4 1:1 1/1
South Africa network standard label for
PVS-120-TL (SIRIUS)
LABEL MATERIAL: 3M type 7331 (UL R/C, PGJI2)
INKS: Refer to UL File MH16411
LABEL CONTENT: Fixed as shown in the picture
SIZE: 45 mm (height) x 90 mm (width)
A.Statuti
G.Iannuzzi
S.Soldani
S.Bindi
WARNING!
NRS 097-2-1:2017 (South Africa)
09/04/2018
09/04/2018
09/04/2018
09/04/2018
XLP.V2Q10.0AL
AA
It is not intended to connect this Inverter to a network with an higher
Network Impedance.
Reference Impedance
Fault Level
0.156
1475
Total [ Ω ]
I_SC [ A ]
3.9
1018
X/R ratio
S_SC [kVA] (three phase)
All
material
used
and finished product, must meet the requirements of the current RoHS
recti
i
ve 2002/95/EC.
Title
Issued
Modified
D
D
esign approved
Elec. Eng. approved
Mfg. approved
Size Scale Dim. in mm Sheet Drawing No. Revision
