ABB PVS-100 User Manual

- 73 -
000835BG
5 - Installation

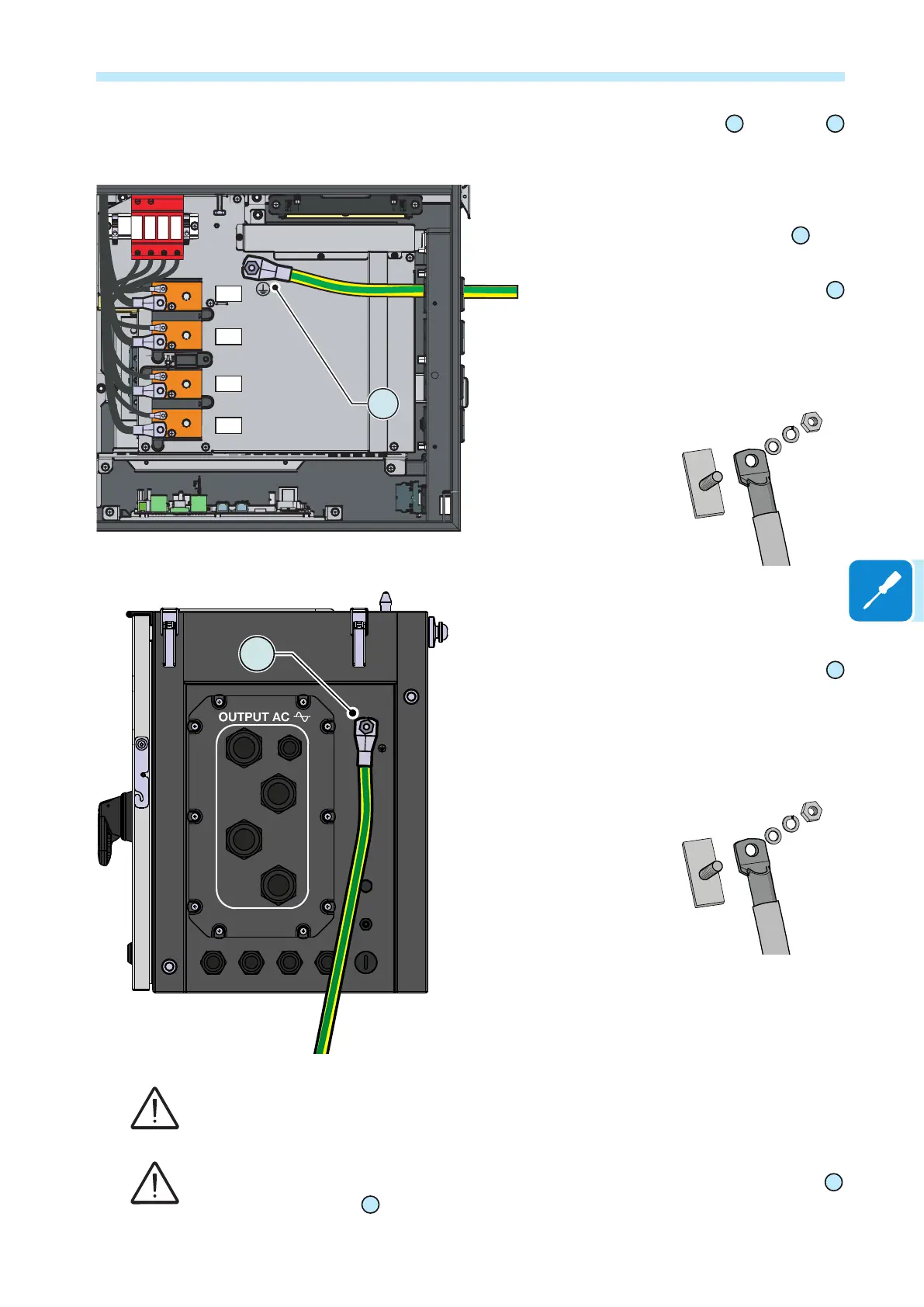

Depending on the ground connection method (internal
25
or external
10
) follow the procedures described below:
Internal ground connection
• Pass the protective earth cable trought the
proper cable gland on the AC panel
11
.
• Fix the protective earth cable lug to the
protection earth connection point (int.)
25
using the washers and bolt pre-installed
on the M10 stud, as shown in the following
diagram:
1 = cable lug
2 = at washer
3 = spring washer
4 = M10 nut
External ground connection
• Fix the protective earth cable lug to the
protection earth connection point (ext.)
10
using the washers and bolt pre-installed
on the M8 stud, as shown in the following
diagram:
1 = cable lug
2 = at washer
3 = spring washer
4 = M8 nut
The cable lug must be installed with a minimum tightening torque of 21Nm.
Before connecting the inverter to AC or DC sources use a suitable multimeter to test the
conductivity of the earth connections between the protection earth connection point (ext.)
10
and a handles thread
04
on the housing of power module.
1
2
3
4
1
2
3
4
R S T N
25
10
