- 74 -
000835BG
5 - Installation

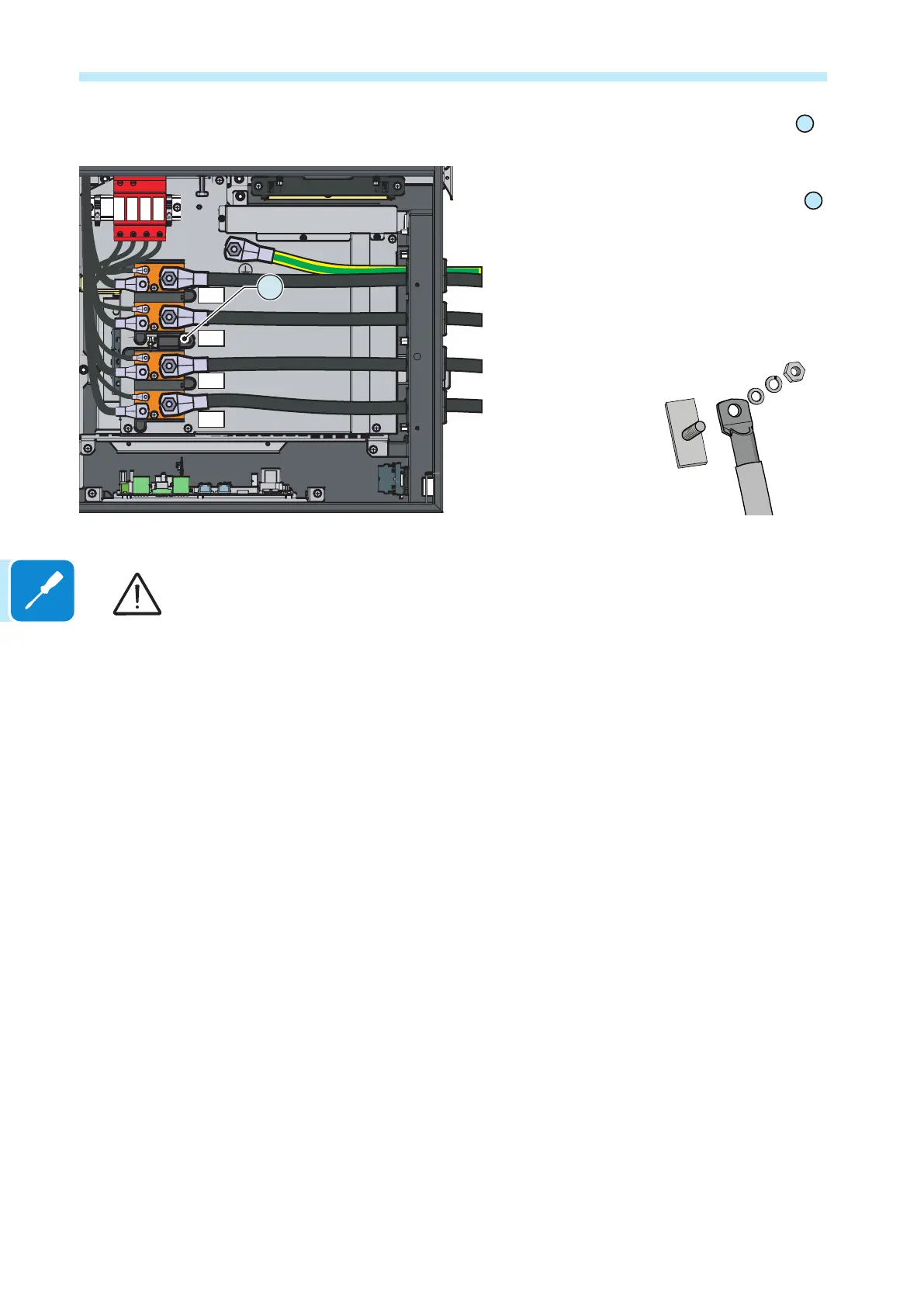

• Pass the phases cables trought the cable glands on the AC panel
11
.
• Fix the phases and neutral (if required)
cable lugs to the AC connection busbars
21
,
paying attention to the corrispondence of the
phases with the labels, using the washers
and the M10 nuts pre-installed on the busbar
as shown in the following diagram:
1 = cable lug
2 = at washer
3 = spring washer
4 = M10 nut
The minimum recommended cross section for the phases conductors is 70 mm².
The cable lugs must be installed with a minimum tightening torque of 25Nm.
• Check the tightness of the AC cable glands at the end of the installation.
R S T N
21
1
2
3
4
