ABB PVS-100 User Manual

- 93 -
000839BG
5 - Installation

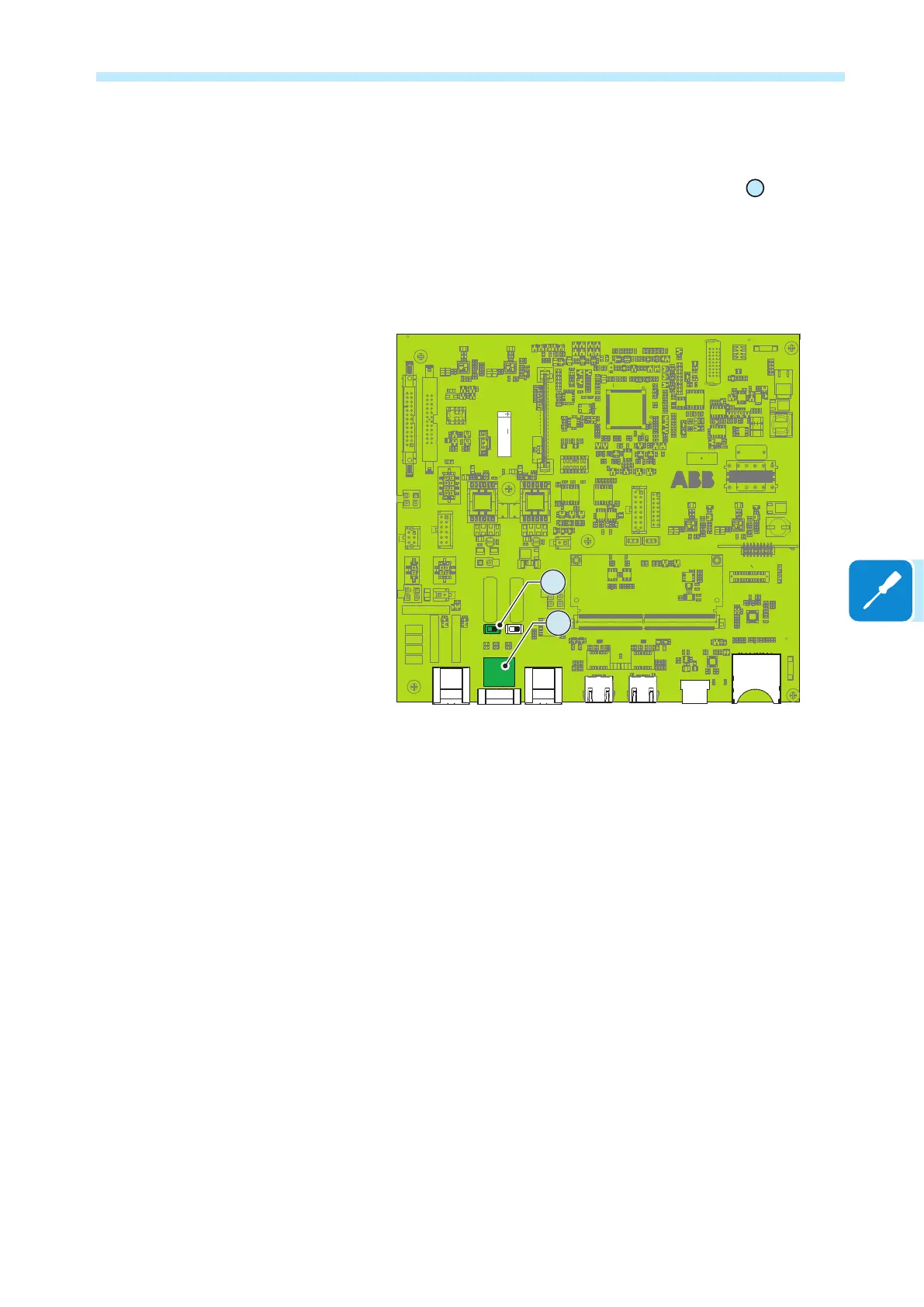

RS485 RJ45 connector for ABB Service operation
The inverter has an second RS485 communication lines
36
working as
Slave to be used by ABB Service personnel only.
This communication port has is congured for communicating over
proprietary communication protocol called “Aurora”.
J2 X1
X2
S5S4
J7
J1
J5 J6
1
2
1
8
7
432
ZGN.V2Q15.2
34
36

ABB PVS-100 Specifications

General

Rated AC power output	100 kW
AC Voltage	400 V
Topology	Transformerless
Cooling Method	Forced Air
Operating temperature range	-25°C to +60°C (derating above 45°C)
Cooling	Forced air
Frequency	50/60 Hz
