Connection, installation / mounting
System Manual
32
5 Connection, installation / mounting
5.1 Outdoor stations: SM installation boxes
Notice
■
The device is always installed together with the surface-mounted installation
box via a deep standard flush-mounted box.
■
The mounting height of the device and the deep standard flush-mounted box
should always be aligned so that the cable can be guided through the
surface-mounted installation box without a problem and the device can again
be mounted at the desired height.

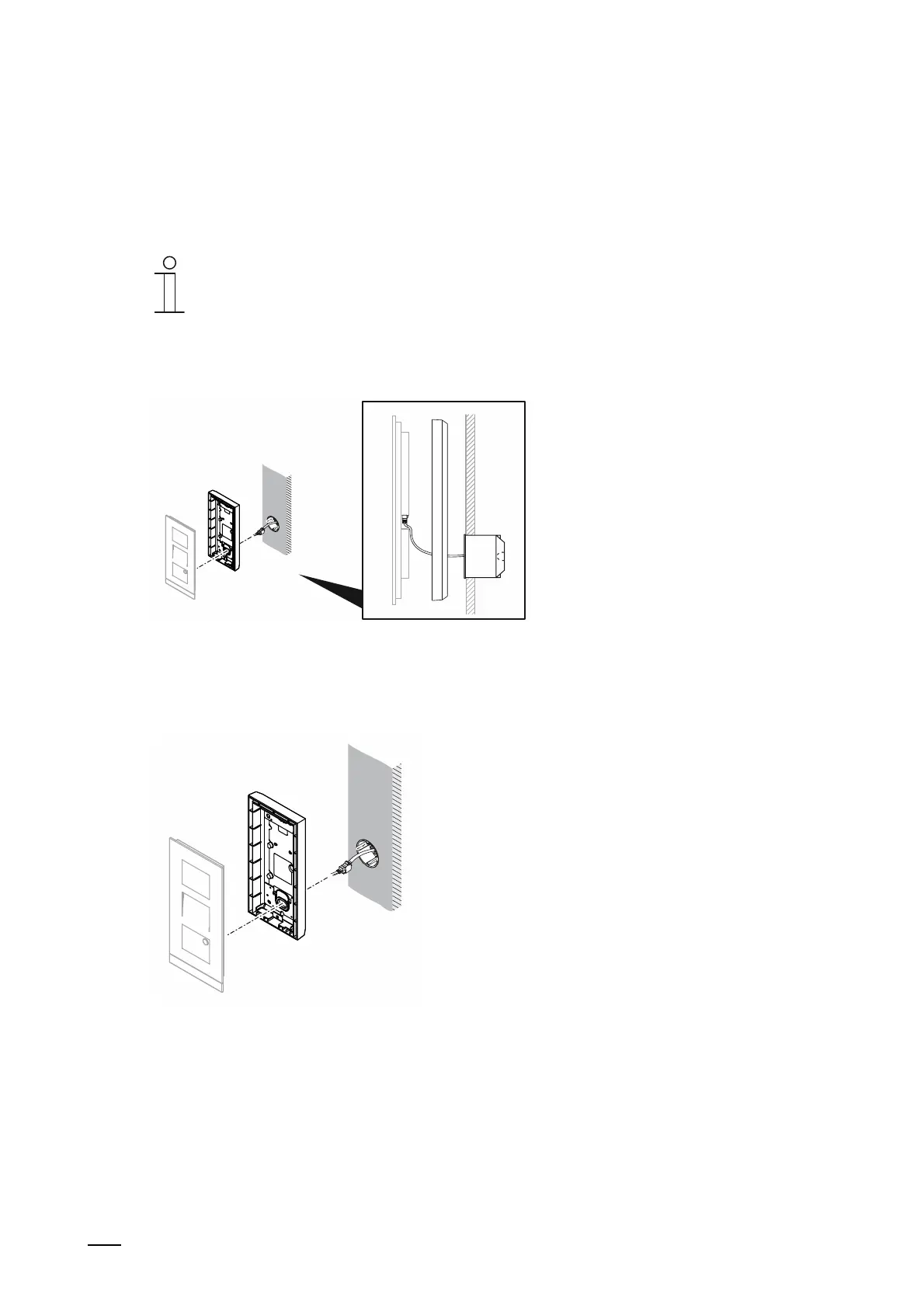

Fig. 8: Mounting instruction for the surface-mounting of outdoor stations
For mounting the surface-mounted installation box, perform the following points:
Fig. 9: Mounting the surface-mounted installation box
1. Align the mounting height between the outdoor station, the surface-mounted installation box
and the deep flush-mounted box.
2. Create the boreholes for mounting.
– The suitable template is enclosed with the box.
– Dimensional drawings, see chapter 5.9.3 “Installation boxes - Surface mounting“ on
page 57.
