ABB Welcome IP - 5.9 Dimensional drawings

Connection, installation / mounting
System Manual
│
56
5.9 Dimensional drawings
5.9.1 Outdoor stations
276,9
135
17,6
1 x 3
348,9
135
17,6
1 x 4
420,9
135
17,6
1 x 5
276,9
235
17,6
2 x 3

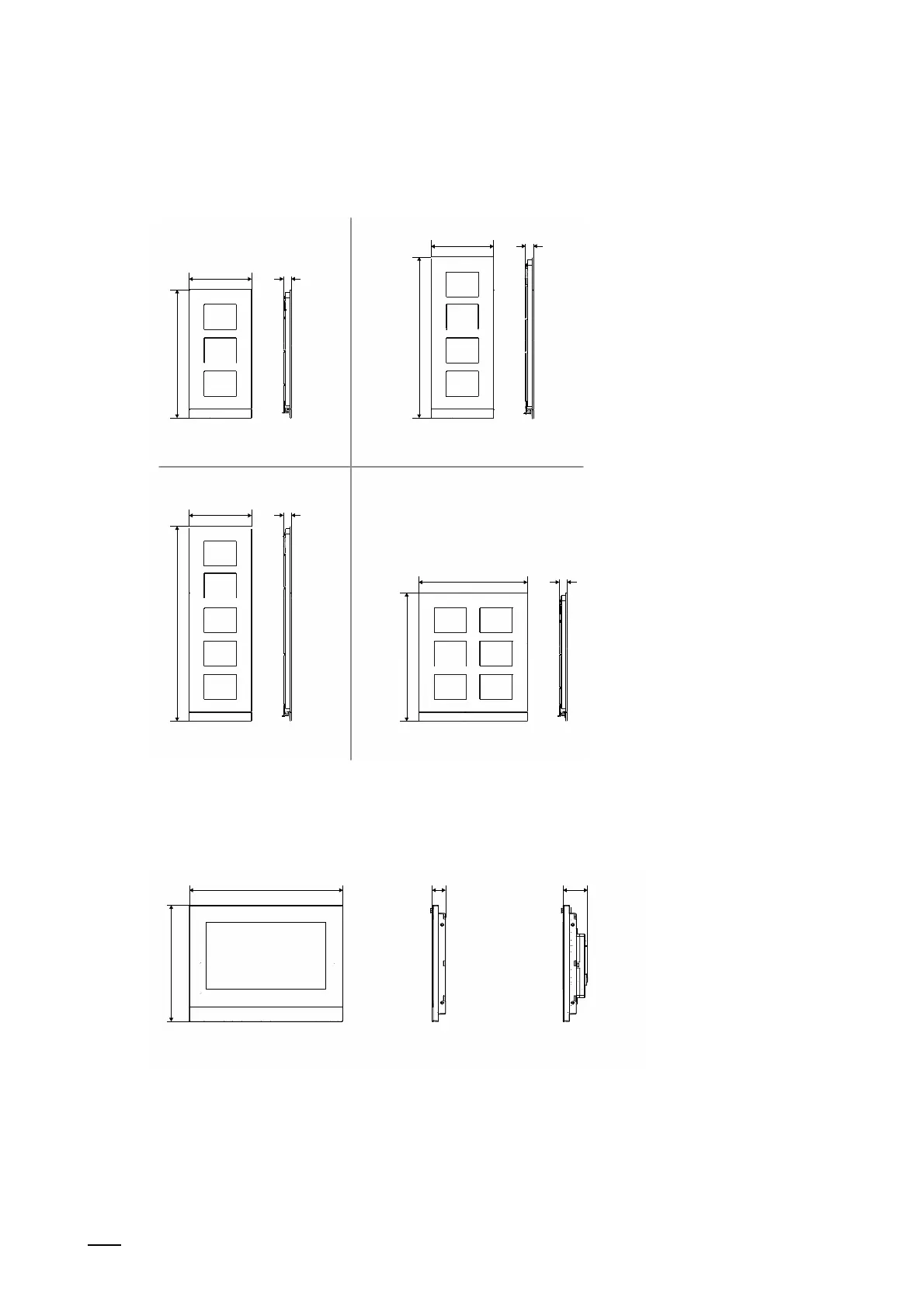

Fig. 37: Exterior dimensions of outdoor stations (dimensions in mm)
5.9.2 Indoor stations IP touch
1
49
,
8
198,5
17,0 30,0
LAN / WLAN LAN / LAN
Fig. 38: Exterior dimensions of indoor stations IP Touch 7 (dimensions in mm)
