Commissioning
System Manual
│
82

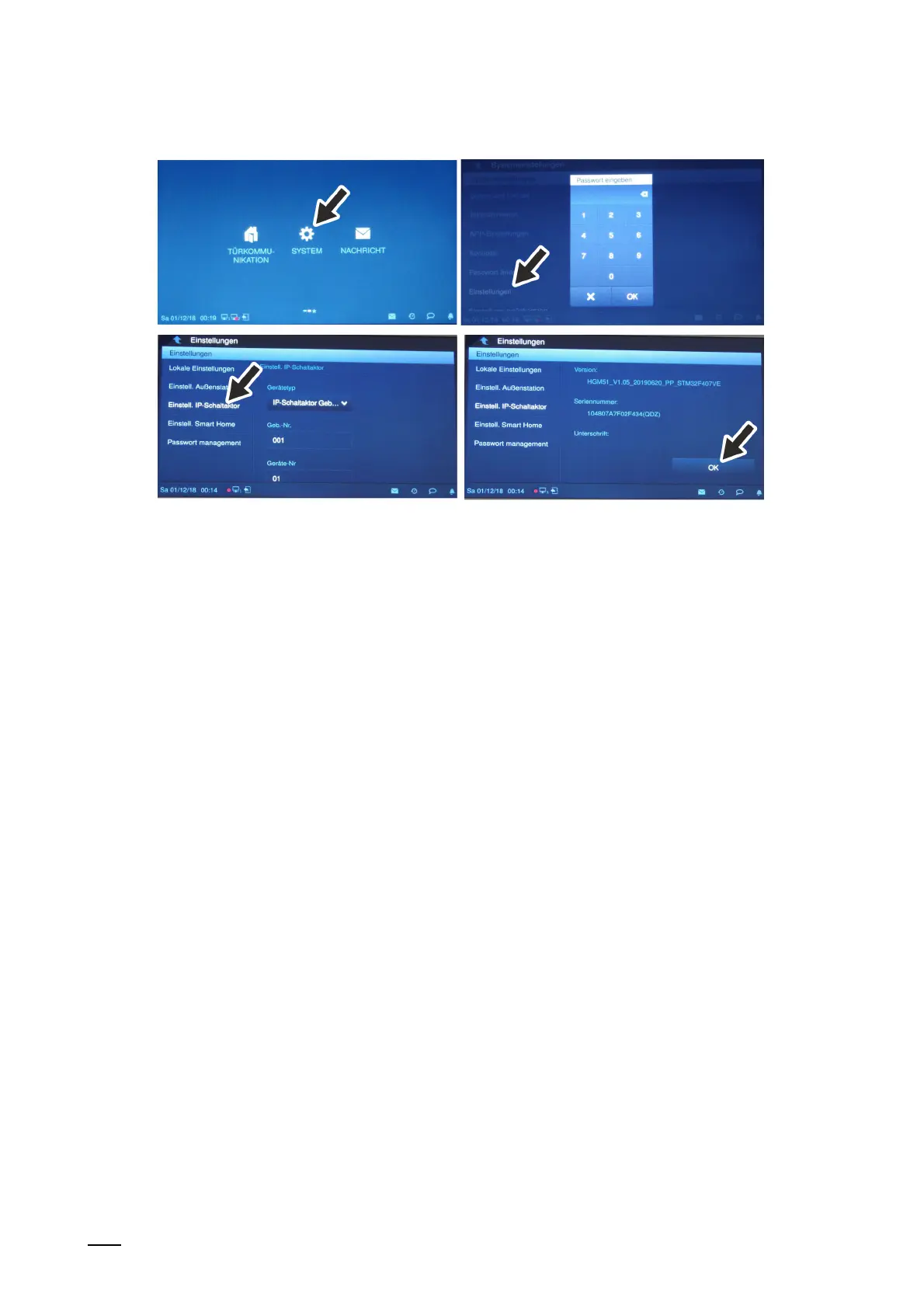

Fig. 57: Addressing IP switch actuator
4. Switch to menu "System / Settings" at the indoor station.
– Switch to function "IP switch actuator setting".
– The IP switch actuator is searched for automatically.
– Select the operating mode of the IP switch actuator.
– IP switch actuator of building: When the IP switch actuator is part of a building.
– IP switch actuator network: When the IP switch actuator is part of a perimeter.
– IP switch actuator private: When the IP switch actuator is part of a units network.
– Addressing the IP switch actuator.
5. Save the entries via the "OK" button.
– Navigate to the "OK" button at the bottom.
6. Restart the IP switch actuator.
The IP switch actuator is addressed.
