ABL 16100 - 3. Connection Diagrams (RS-232, Alarm;RS-485, VGA)

Real Time Triplex Stand Alone DVR
20

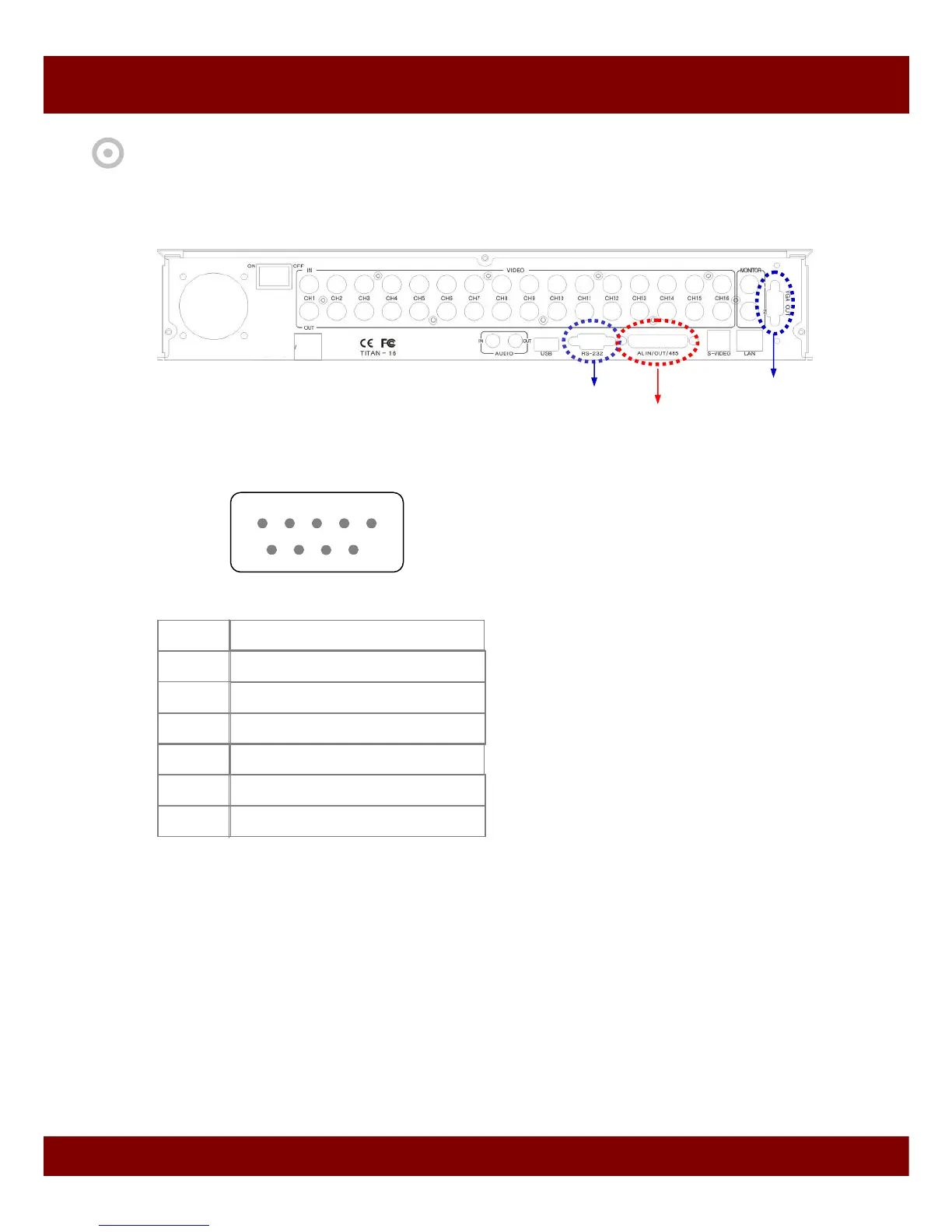

3. PTZF Camera & Sensor Connection Diagram
1) RS-232 (9 Pin D-Sub Connector)
CHAP 2. INSTALLATION
12345
6789
N/C
TX 232C
RX 232C
N/C
GND
6 ~ 9 N/C
* N/C : Connection Not Required
Description
2
3
4
5
1
No
1) RS-232
2) Alarm In/Out
& RS-485
3) VGA
