Real Time Triplex Stand Alone DVR
16

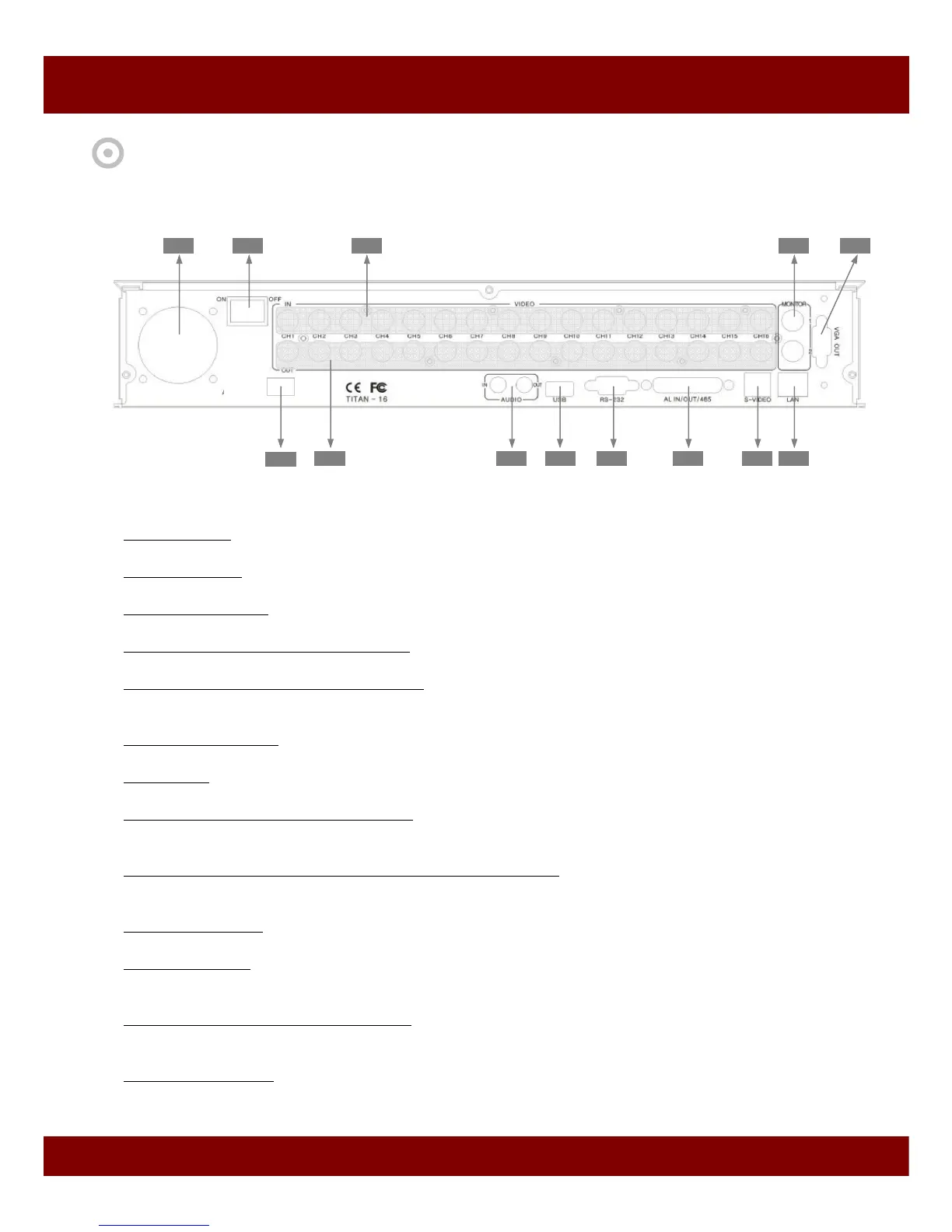

6. Rear Panel
1. Cooling Fan
2. Power Switch
3. AC Power Switch
4. 16 BNC connectors for camera input
5. 16 BNC connectors for monitor output
• These are mainly for monitors. And also you can use these for VCR recorder backup.
6. Audio In / Out Port
7. USB Port
8. RS-232 Port (9 Pin D-Sub Connector)
• It is for factory use.
9. Alarm In / Out and RS-485 Port (25 Pin D-Sub Connector)
• It is to communicate with external sensors, alarm and PTZ camera to control.
10. S-Video Output
11. LAN Terminal
• It is to connect to LAN or Internet.
12. BNC connectors for monitor output
• These are mainly for monitors. And also you can use these for VCR recorder backup.
13. VGA Output Port
• This is mainly for PC monitors.
[ 16CH DVR ]
CHAP 1. INTRODUCTION
1 2
3
4
5 6 7 8 9 10 11
12 13
