Real Time Triplex Stand Alone DVR
46
CHAP 3. SETUP MENU

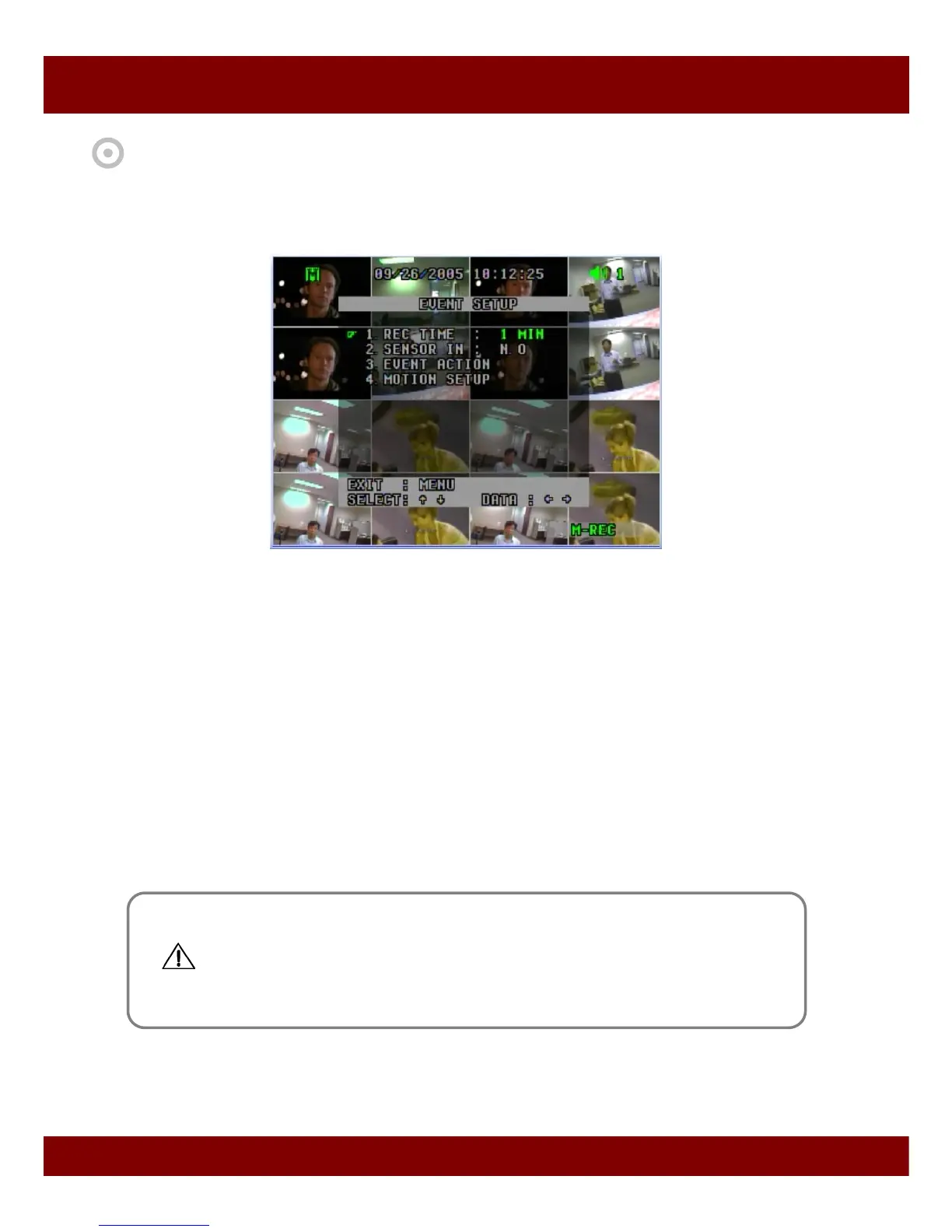

4. Event Setup
This screen enables simple set up of DVR motion detection, alarm and external sensor configurations
4.1 REC Time 30 sec ~ 30 min
Once event recording is triggered, that channel is recorded for that period. Each channels works
independently.
4.2 Sensor In N.O/N.C
The Sensor-in terminals of the DVR are used to connect external motion sensors or door/window
contacts.
There are two types of general sensors in the market. The one is "normal mode-open“, N.O, which
means two sensor lines are not connected (open) in the normal mode but the lines are to be connected
(close) in the activation mode. The other is "normal mode-close“, N.C, which means two sensor lines
are connected (close) in the normal mode but the lines are to be disconnected (open)
in the activation mode.
• To return to menu, press Menu button.
You have to make sure of sensor type between N.O and N.C before installation.
Otherwise, it may not work properly.
- N.O : Normal Open type sensor
- N.C : Normal Close type sensor
