27.5.5 Fuses MAX Li-Ions
The fuses are located behind the removable rear panel.
The following vehicle fuse types are installed:
Type ATO 3A (violet), type ATO 5A (orange), type ATO 20A (yellow), type MIDI 40A (green)

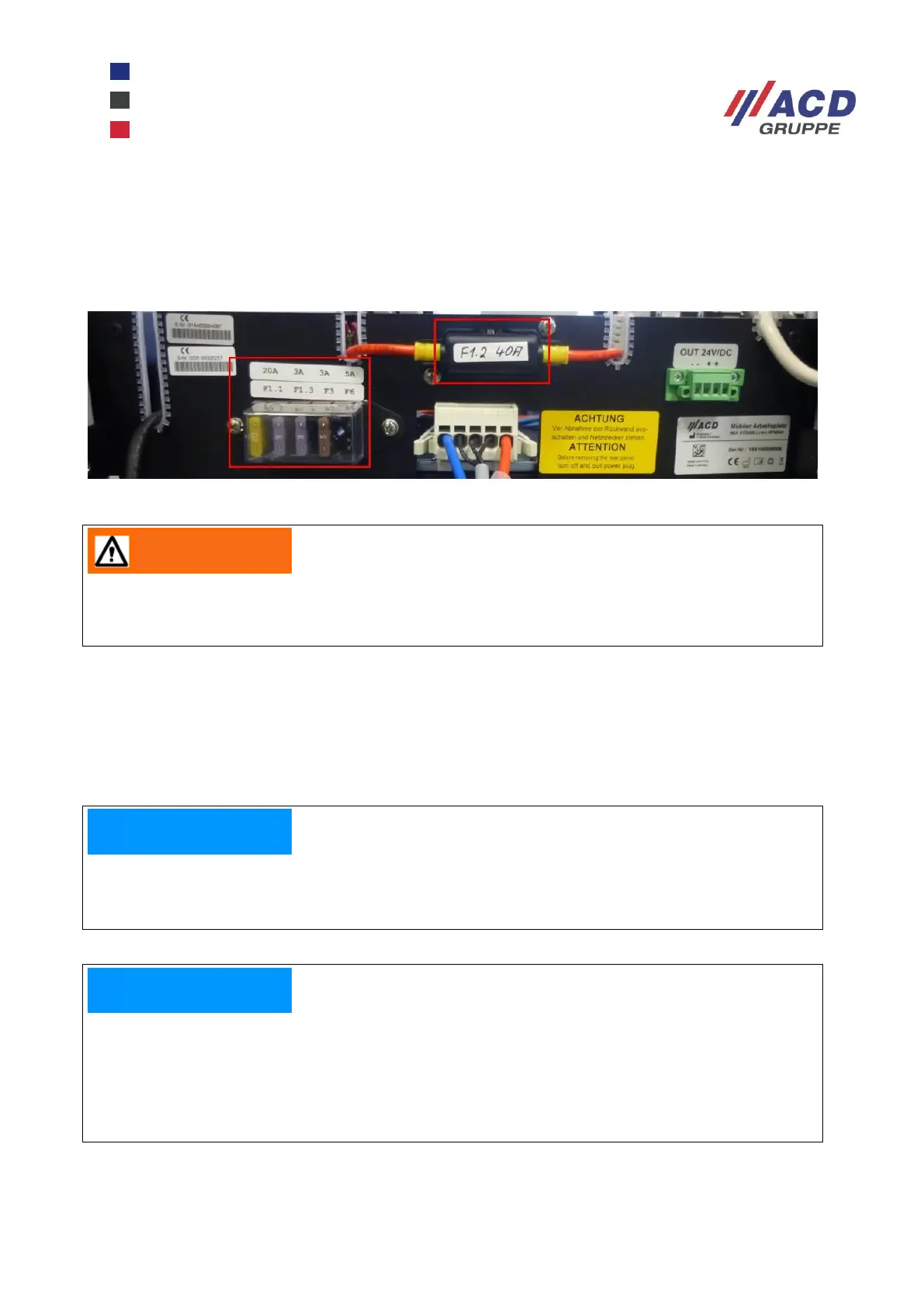

Figure 28: MAX Li-Ions fuses
27.5.6 Information on installed parts for MAX Li-Ions
27.5.6.1 Charger
The charger installed in this mobile workstation can be connected to any shockproof socket with a mains
voltage of 180 – 265 V AC and 50 Hz. Once the operating temperature has been reached, the charging
process will start immediately after connection to the mains.
For better accessibility, you can attach the mains cable for the internal charger to the top post on the right.
Alternatively, store it behind the rear panel.
When changing the fuses, be sure to use only the same type of fuse as specified in the lettering on
the fuses.
Do not plug the charger connecting cable into the mobile workstation socket strip because this
will not charge the batteries.
Connection to the mains must comply with the national provisions for electrical connections. If the
charger cable is defective, please contact the manufacturer.
A deep discharge protection feature is integrated in the mobile workstation which prevents this
deep discharging under normal operating conditions. The batteries should be recharged soon
after switching off by the deep discharge protection function to prevent further deep discharging
through self-discharging.
