Acer H7530D - Disassemble Logo Backlight Module

H7530/H7530D Condential 2-4
2-5 Disassemble Logo
Backlight Module

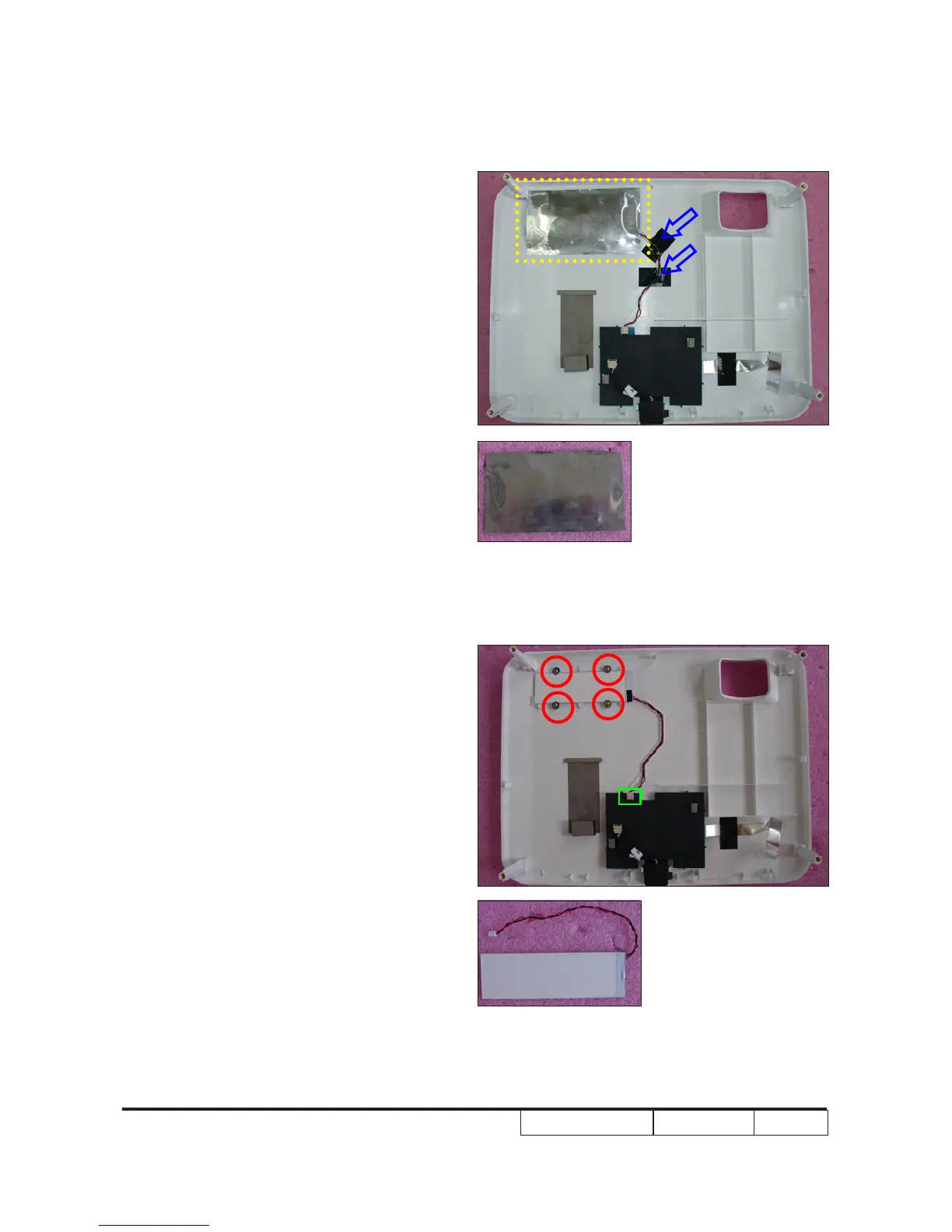

1. Tear off the Aluminum Foil (as yellow dots
square).
2. Tear off 2 black tapes (as blue arrows
point).
3. Unscrew 4 screws (as red circle).
4. Unplug 1 connector (as green square).
5. Disassemble the Logo Backlight Module.
Logo Backlight Module
Aluminum Foil
