H7530/H7530D Condential 2-22
2-22 Disassemble Bottom
Shielding

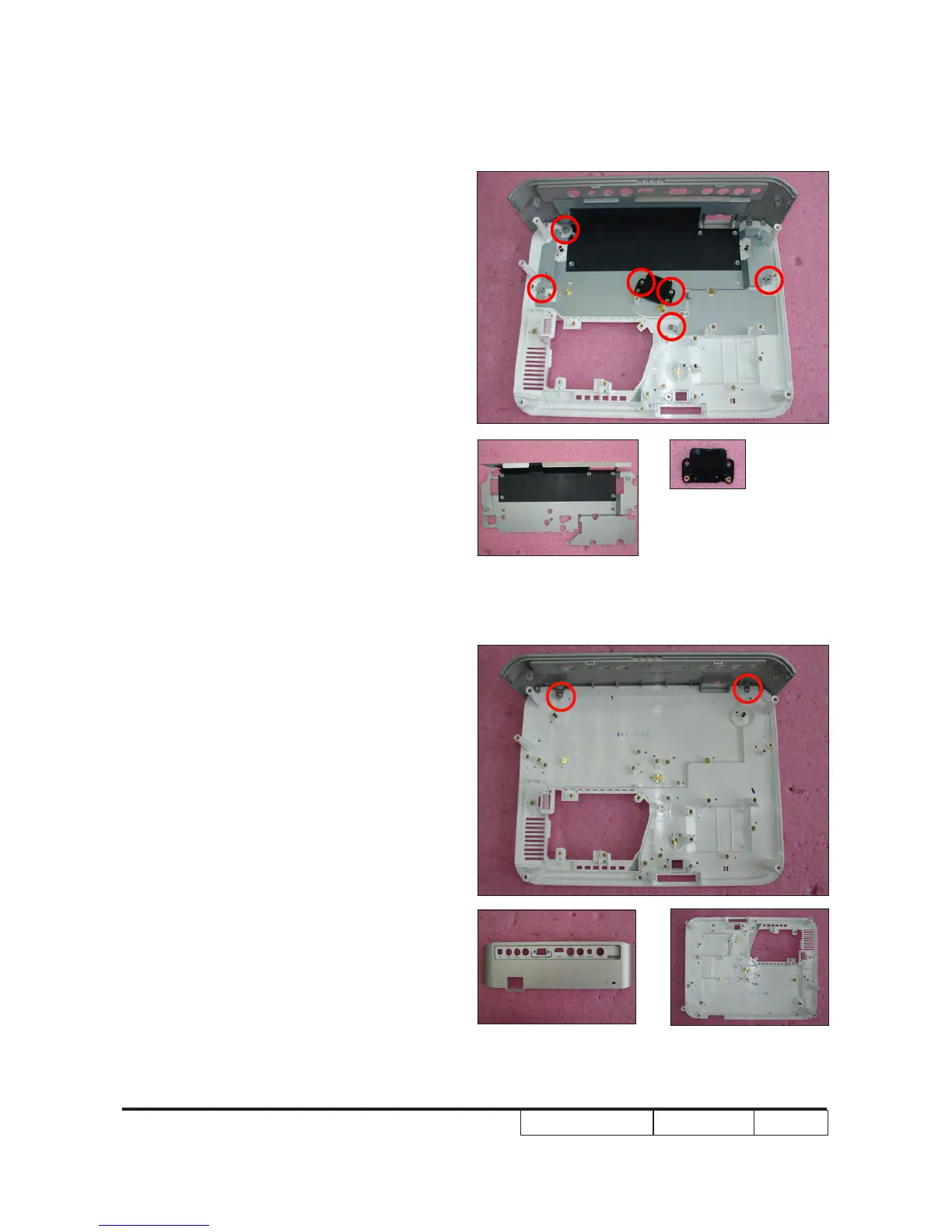

1. Unscrew 6 screws (as red cricle) to
disassemble the Bottom Shielding.
2-23 Disassemble Back
Cover
1. Unscrew 2 screws (as red cricle) to
disassemble the Back Cover.
