Acer H7530D - Assemble Interrupt Switch and Thermal Sensor Board

H7530/H7530D Condential 2-29
2-32 Assemble Interrupt
Switch and Thermal
Sensor Board

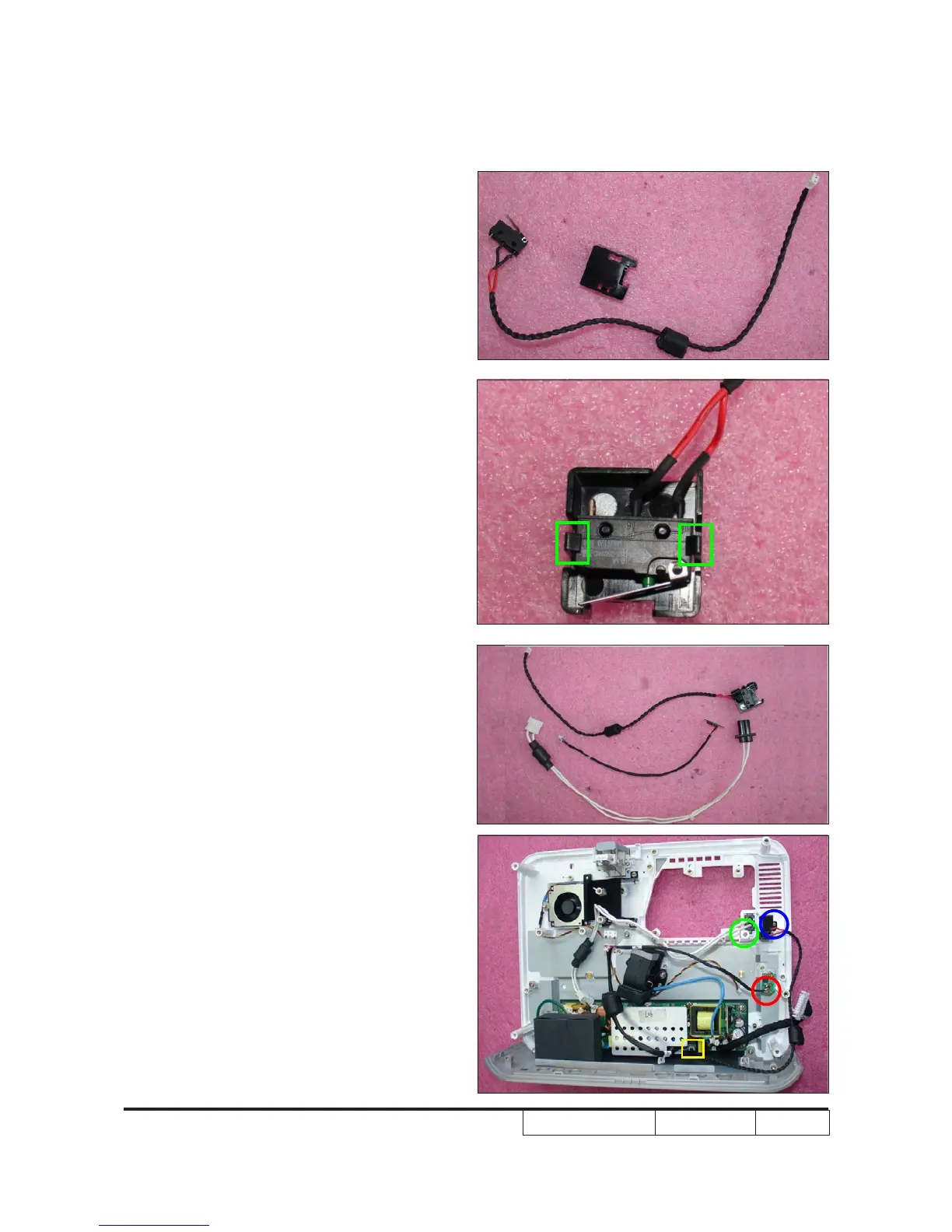

1. Fasten 2 tenons (as green square) to
assemble the Interrupt Switch and
Switch Holder.
2. Plug 1 connector (as yellow square)
and screw 1 screw (as blue circle) to
assemble the Interrupt Switch.
3. Screw 1 screw (as green circle) to
assemble the Lamp Driver to Lamp
Cable.
4. Screw 1 screw (as red circle) to
assemble the Thermal Sensor Board.
