Acer H7530D - Disassemble LVPS Module

H7530/H7530D Condential 2-20
2-20 Disassemble LVPS
Module

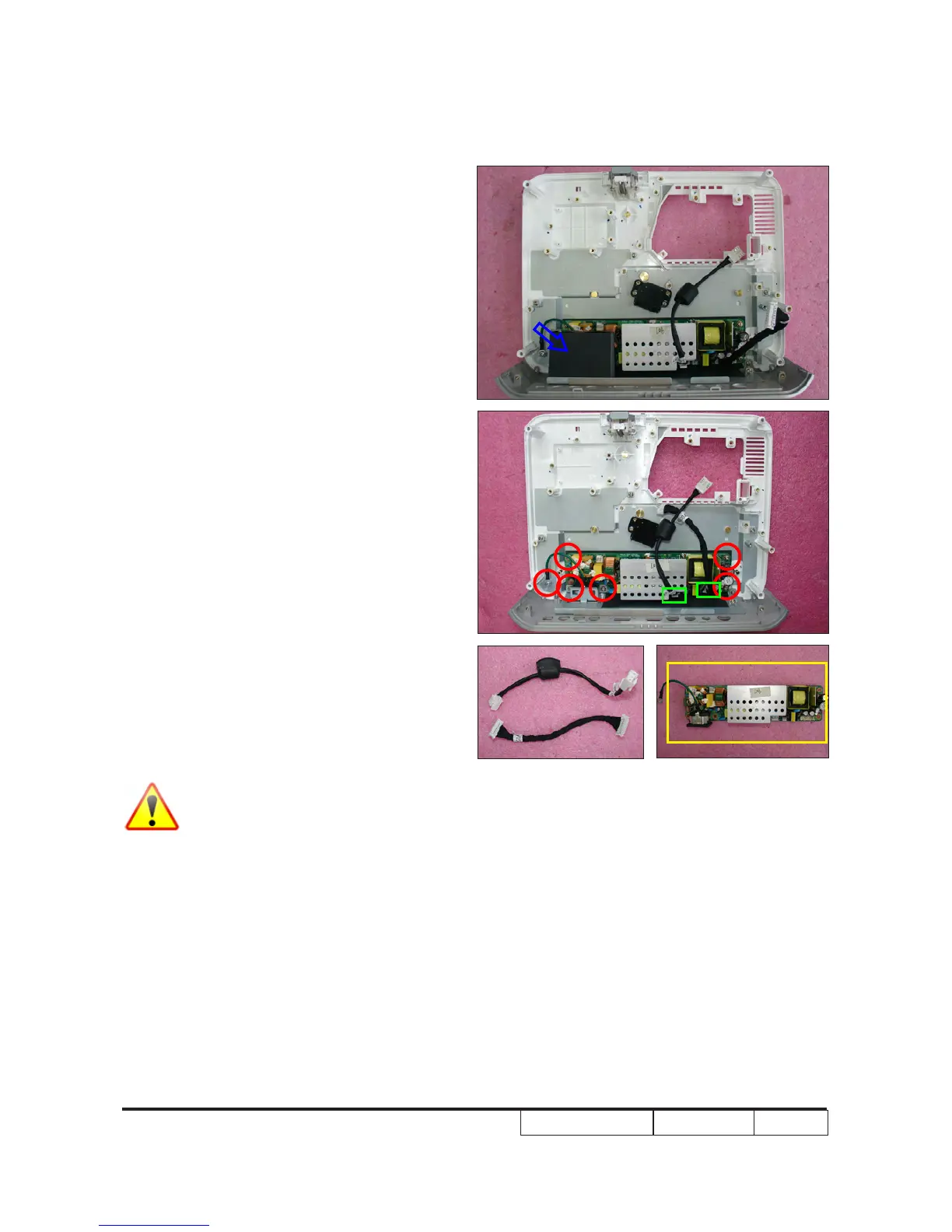

1. Tear off the mylar (as blue arrow point).
2. Unplug 2 connectors (as green square)
to disassemble the cables from LVPS
Module.
3. Unscrew 6 screws (as red cricle) to
disassemble the LVPS Module.
NOTE: Circuit boards > 10 cm² has been highlighted with the yellow rectangle as
above image shows. Please detach the Circuit boards and follow local
regulations for disposal.
