Acer H7530D - Assemble Logo Backlight Module

H7530/H7530D Condential 2-41

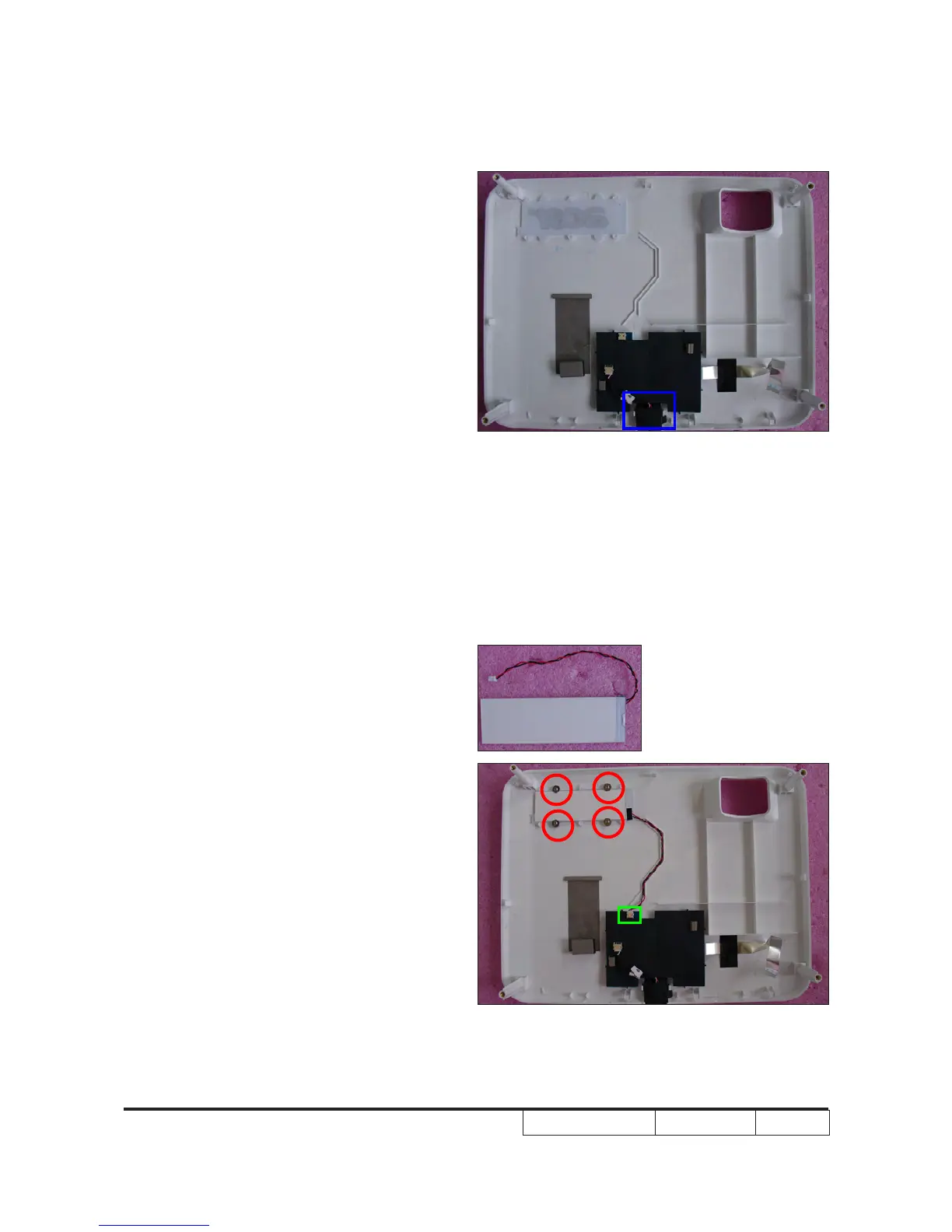

8. Stick the black mylar (as blue square).
2-44 Assemble Logo
Backlight Module
1. Assemble the Logo Backlight Module.
2. Plug 1 connector (as green square).
3. Screw 4 screws (as red circle).
