Acer H7530D - Disassemble DMD Chip and DMD Board

H7530/H7530D Condential 2-16
2-15 Disassemble DMD ChipDMD Chip
and DMD Board

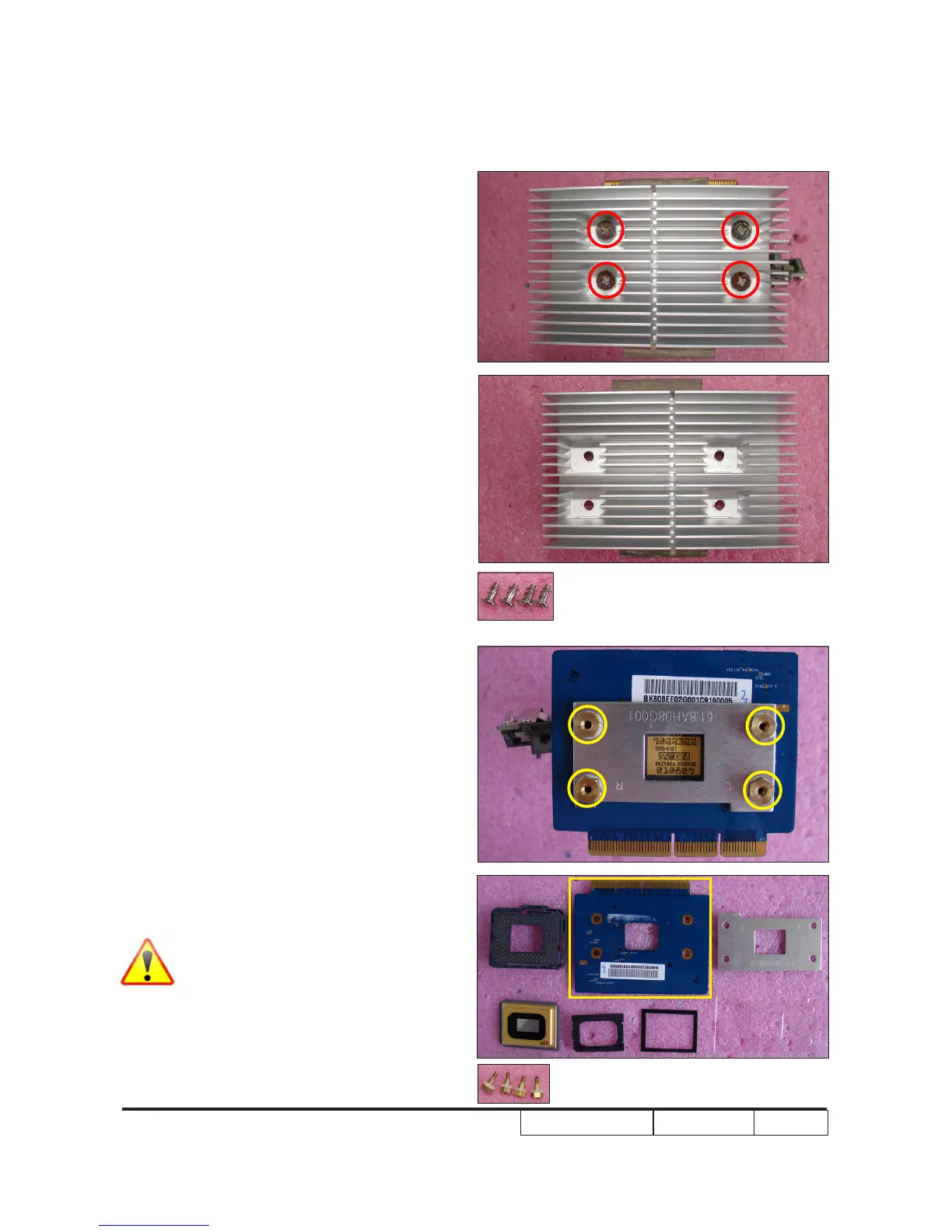

1. Unscrew 4 screws (as red circle) to
disassemble the Heat Sink.
2. Unscrew 4 hex screws (as yellow circle)
to disassemble the DMD Chip, DMD
Board and other parts.
Note: - Avoid touching the DMD Chip when you
disassemble it.
NOTE: Circuit boards > 10 cm² has been
highlighted with the yellow rectangle
as above image shows. Please
detach the Circuit boards and follow
local regulations for disposal.
