Acer H7530D - Disassemble Thermal Sensor Board and Interrupt Switch

H7530/H7530D Condential 2-18
4. Unfasten 2 tenons (as green square) to
separate the Interrupt Switch and Switch
Holder.
Lamp Driver to Lamp Cable
Interrupt Switch
Thermal Sensor Board

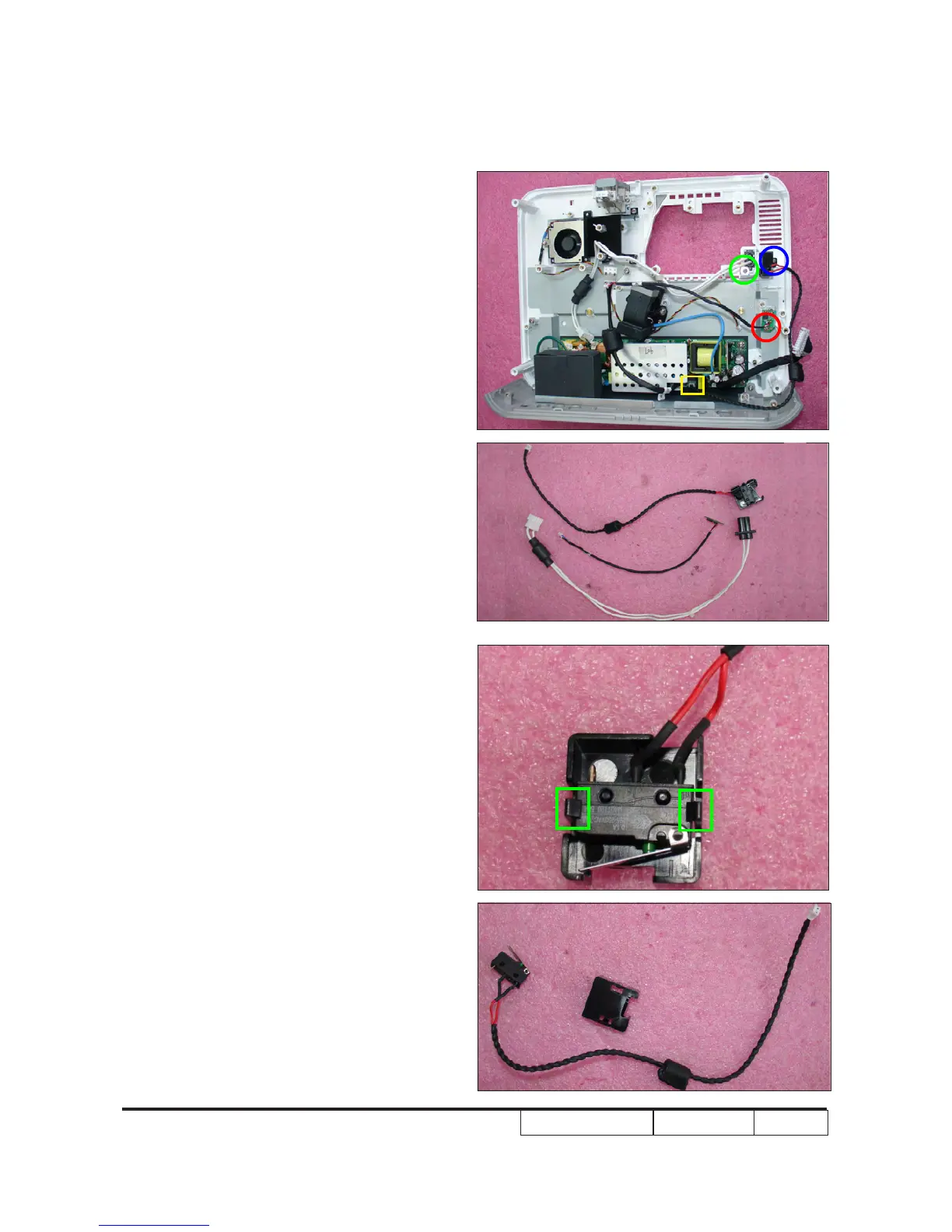

2-17 Disassemble Thermal
Sensor Board and
Interrupt Switch
1. Unscrew 1 screw (as red circle) to
disassemble the Thermal Sensor Board.
2. Unscrew 1 screw (as green circle) to
disassemble the Lamp Driver to Lamp
Cable.
3. Unplug 1 connector (as yellow square)
and unscrew 1 screw (as blue circle) to
disassemble the Interrupt Switch.
