Acer H7530D - Assemble Focus Ring and Zoom Ring

H7530/H7530D Condential 2-32

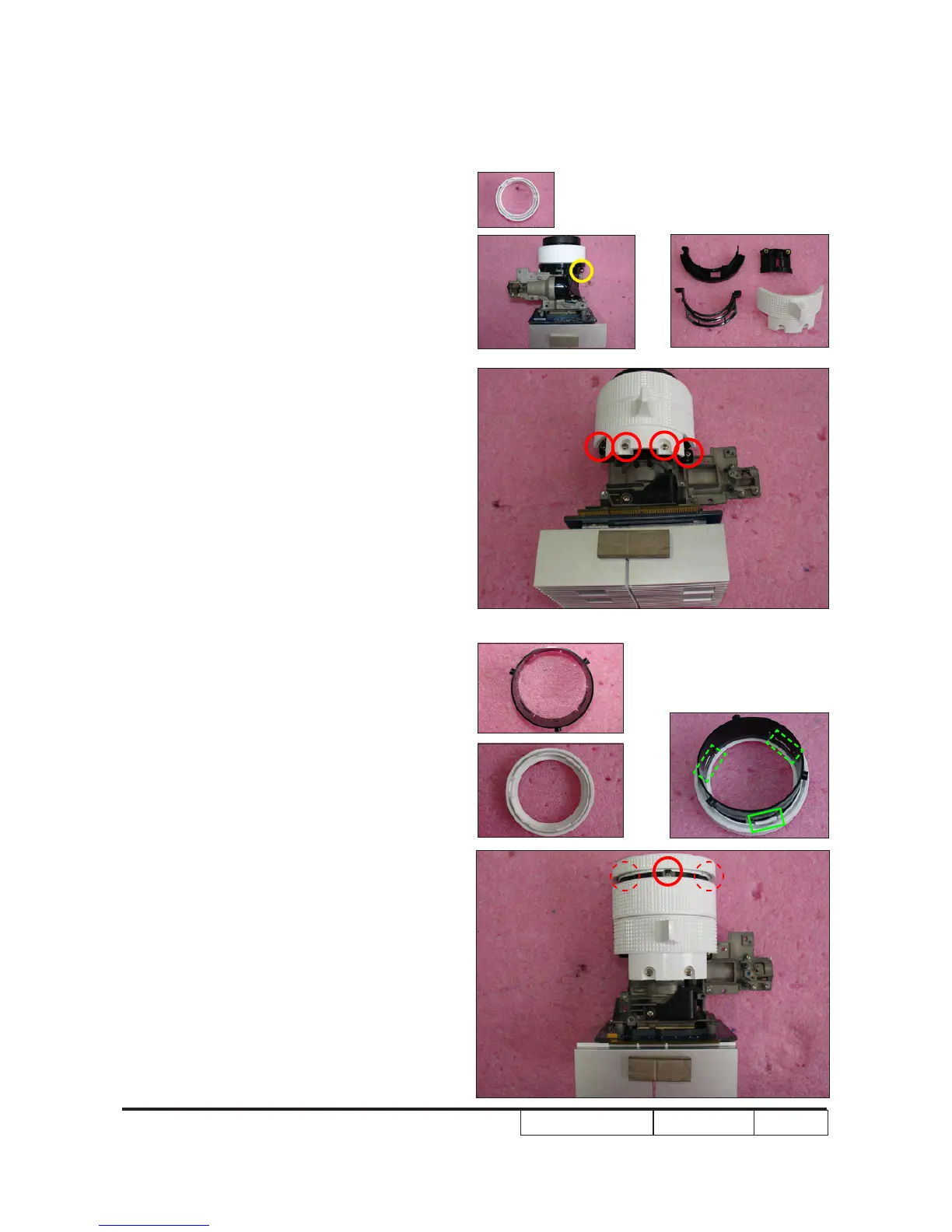

5. Fasten 3 tenons (as green square) to
assemble the Focus Ring Decoration
and Focus Ring Inbuilt.
6. Screw 3 screws (as red circle).
2-35 Assemble Focus Ring
and Zoom Ring
1. Assemble Zoom Ring, Zoom Ring
Holder and Focus Ring.
2. Screw 1 screw (as yellow circle).
3.Turn over the Engine Module.
4. Screw 4 screws (as red circle).
