2-33 Assemble Fan Module

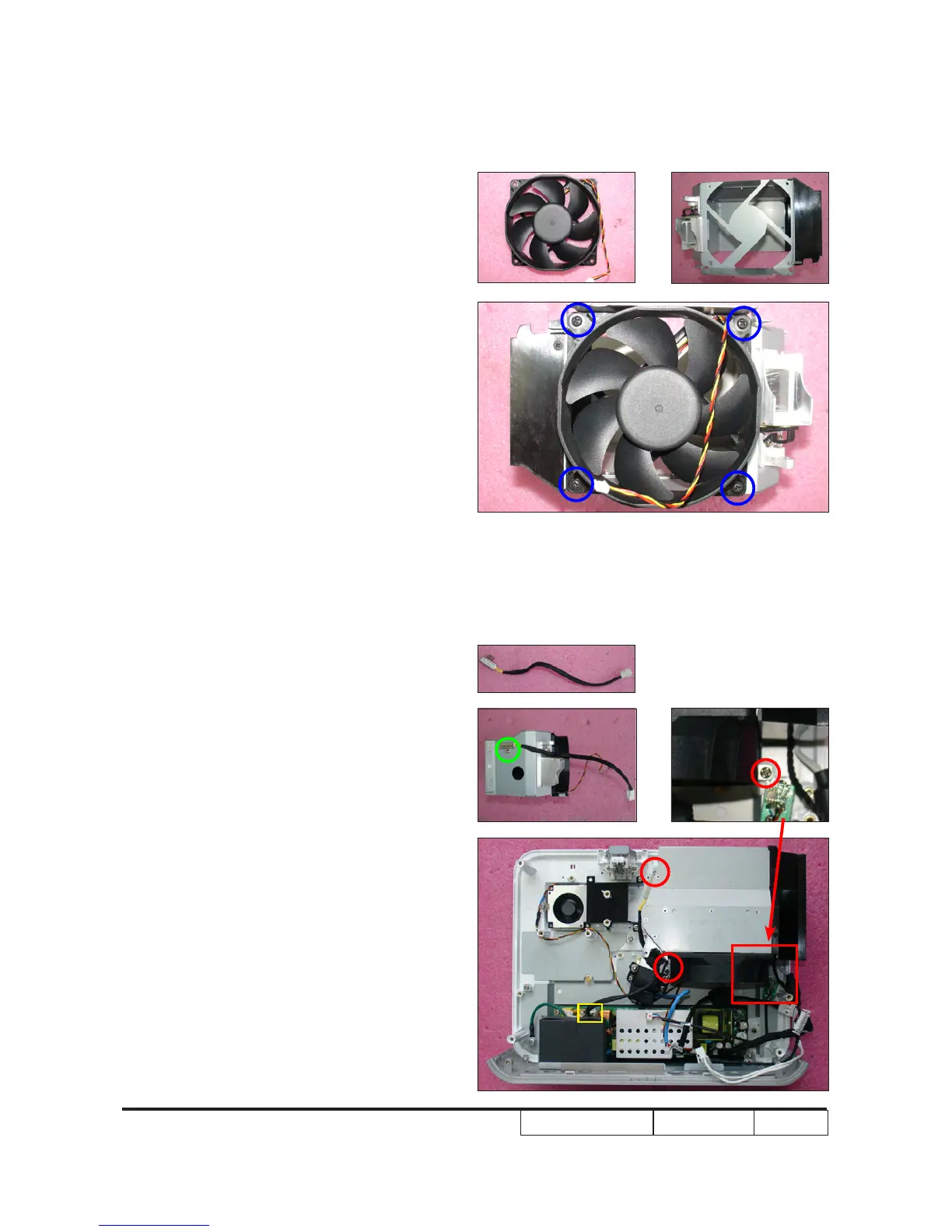

1. Screw 4 screws (as blue circle) to
assemble System Fan and Fan
Shielding.
2. Screw 1 screw (as green circle) to
assemble the Thermal Switch.
3. Screw 3 screws (as red circle) to
assemble the Fan Module.
4. Plug 1 connector (as yellow square).
