Acer H7530D - Disassemble da Motor Module and Color Wheel Module

H7530/H7530D Condential 2-14
2-13 Disassemble DA Motor
Module and Color
Wheel Module

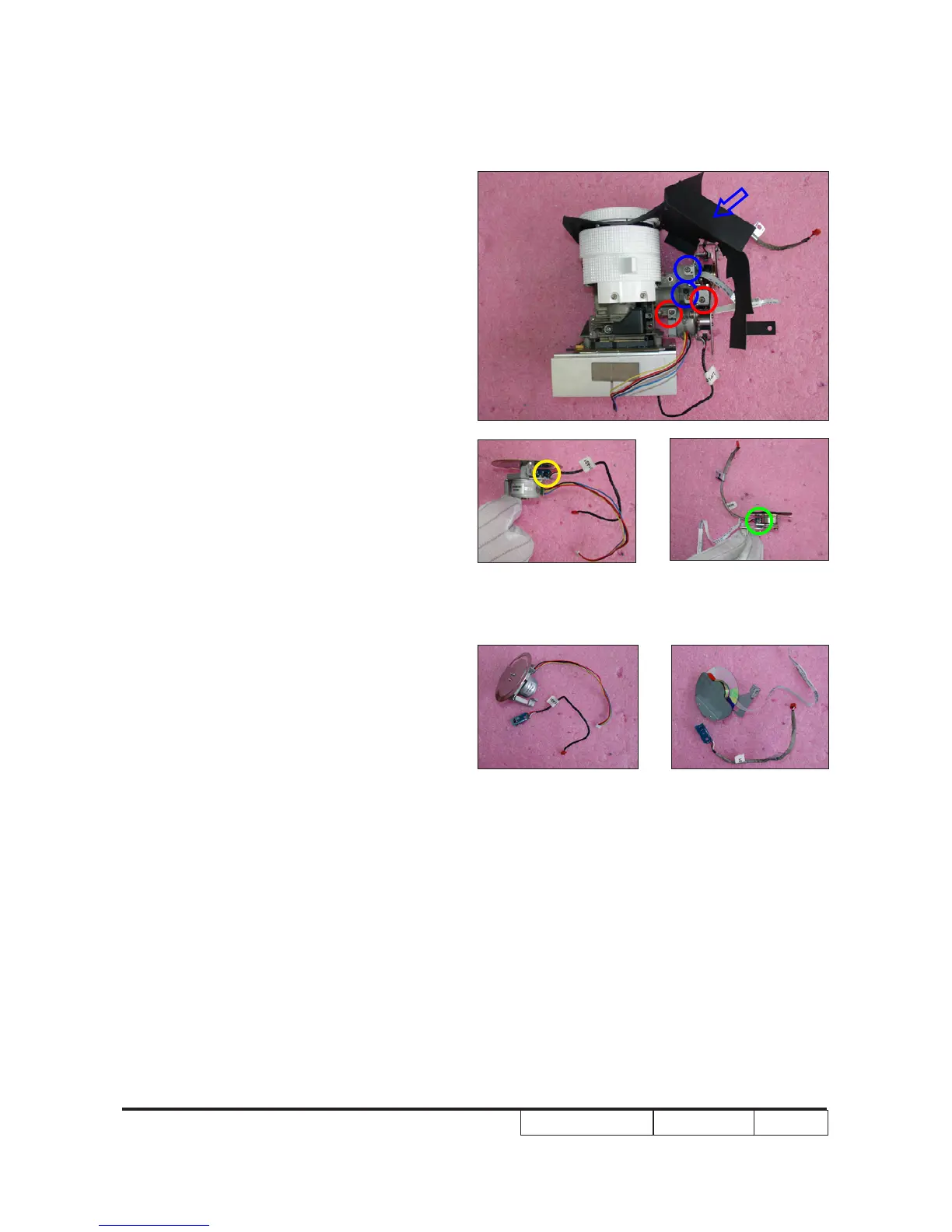

1. Disassemble the black mylar (as blue
arrow point).
2. Unscrew 2 screws (as red circle) to
disassemble the DA Motor Module.
(only for H7530D)
3. Unscrew 2 screws (as blue circle) to
disassemble the Color Wheel Module.
4. Unscrew 1 screw (as yellow circle) to
disassemble the DA Motor Photo
Sensor Board from the DA Motor
Module. (only for H7530D)
5. Unscrew 1 screw (as green circle) to
disassemble the Photo Sensor Board
from the Color Wheel Module.
DA Moduel and DA Motor
Photo Sensoer Board
(only for H7530D)
Color Wheel Moduel and
Photo Sensoer Board
