H7530/H7530D Condential 2-39
2-42 Disassemble Main
Board Shielding

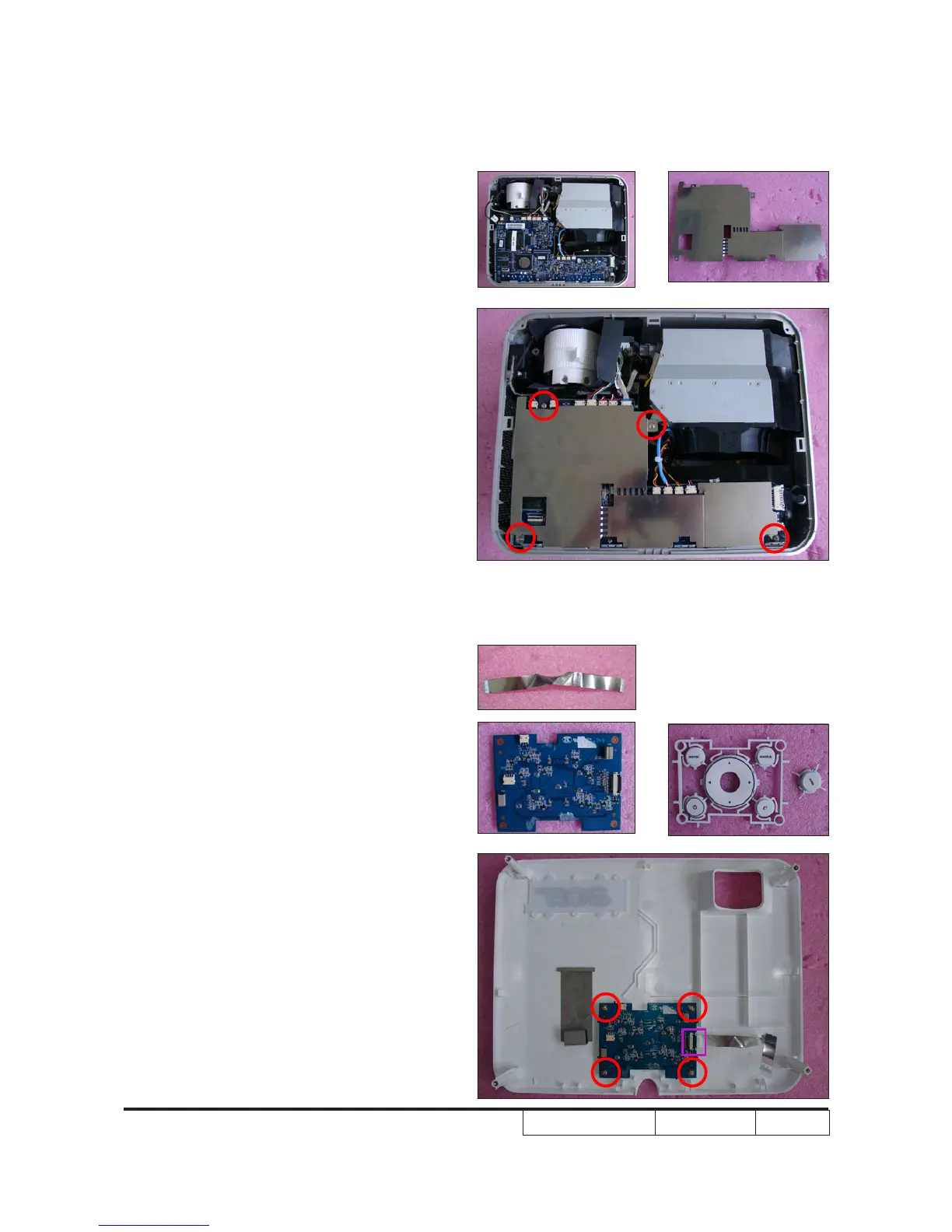

1. Screw 4 screws (as red circle) to
assemble the Main Board Shielding.
2-43 Assemble Keypad
Board and Top IR
Sensor Board
1. Screw 4 screws (as red circle) to
assemble the Keypad Board and
Keypads.
2. Plug 1 connector (as purple square)
to assemble the FPC cable.
