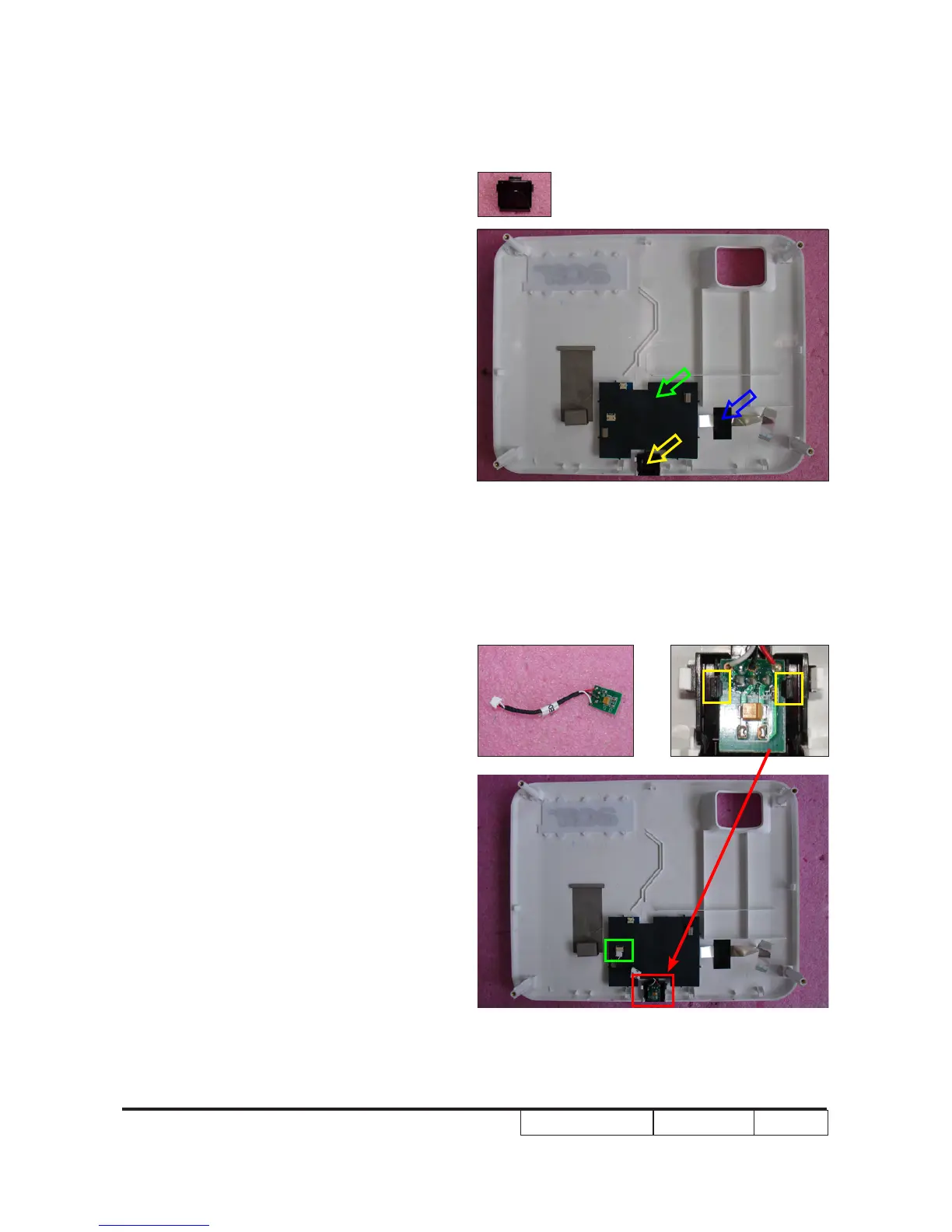

3. Stick the black mylar (as green arrow
point).
4.Stick the black tape (as blue arrow point).
5. Assemble the Top IR Cap (as yellow
arrow point).
6. Fasten 2 tenons (as yellow square) to
assemble the Top IR Sensor Board.
7. Plug 1 connector (as green square).
