Acer H7530D - Setup Procedure (HDMI)

H7530/H7530D
Condential
6-5

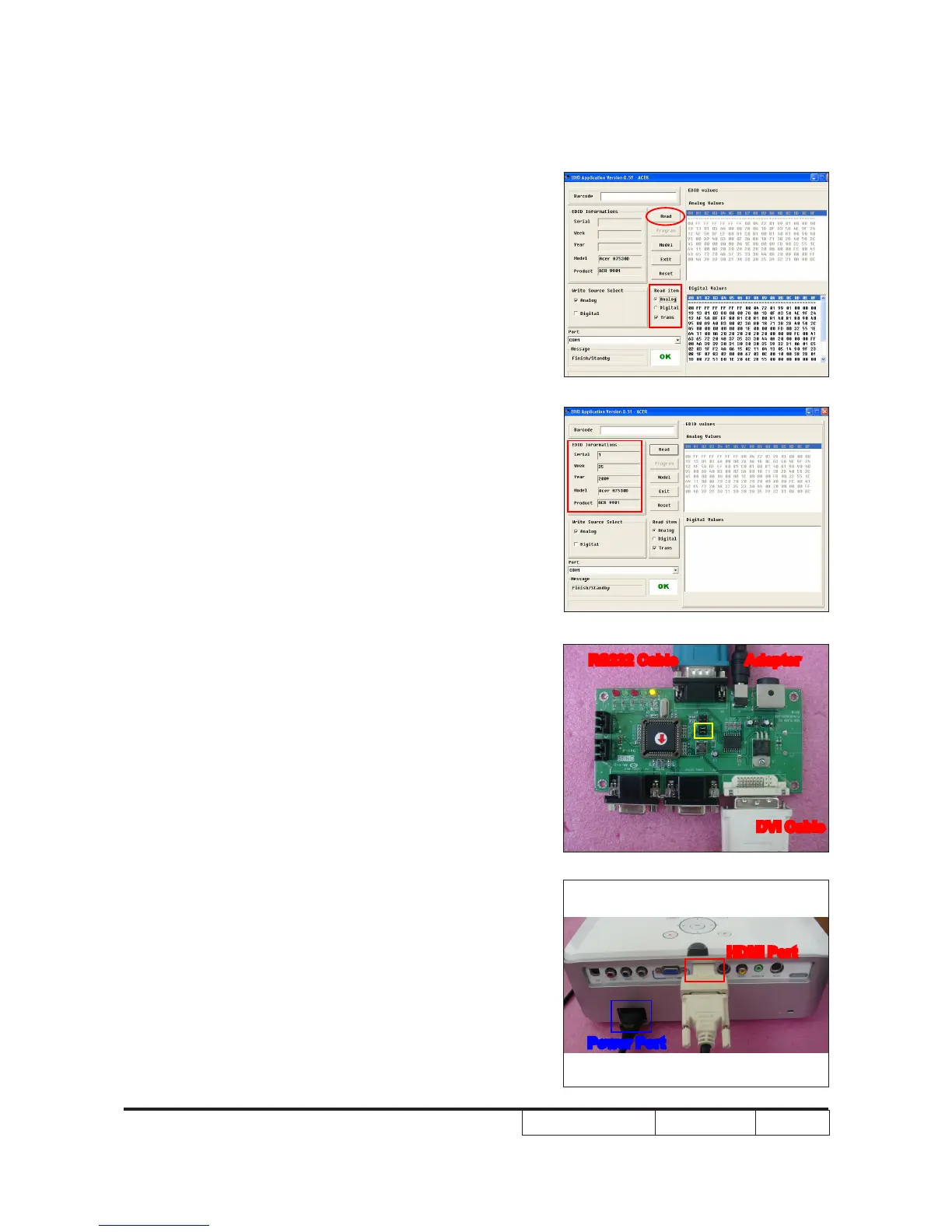

5. Read EDID information for VGA
- In "Read item", select "Analog" and
"Trans", then click the "Read".
6. EDID information will show the result.
6-5 Setup Procedure (HDMI)
1. Connect all ports
(1) Connect P1 of xture with COM Port of
PC/Laptop by RS232 Cable.
(2) Connect P3 of xture with HDMI Port of
projector by DVI Cable & DVI-HDMI
Adapter.
(3) Plug Power Adapter to JP2 of xture.
(4) Plug Power Cord to projector.
Note: - You must conrm that the JP3 is closed in
all procedure.
JP3
Adapter
JP2P1
P3
RS232 Cable
DVI Cable
HDMI Port
Power Port
