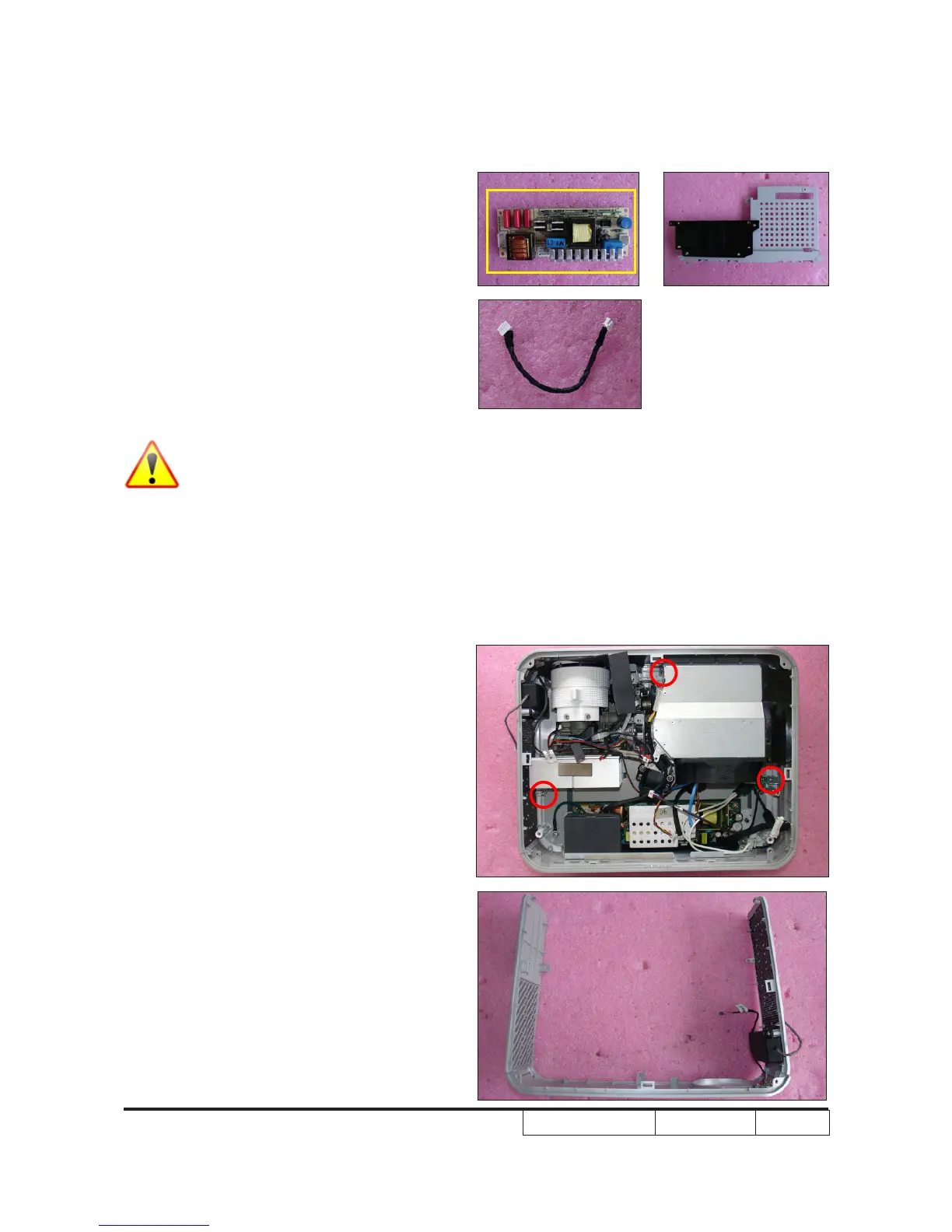

7. Disassemble the Main Board Bottom
Shielding, Lamp Driver Module
and cable.
2-10 Disassemble Left/Front/
Right Cover Module
1. Unscrew 3 screws (as red circle) to
disassemble the Left/Front/Right Cover.
NOTE: Circuit boards > 10 cm² has been highlighted with the yellow rectangle as
above image shows. Please detach the Circuit boards and follow local
regulations for disposal.
