Acer P5271 - Page 110

P5271/P5290/P5390W/P5271i
Condential
VIII
Item P/N Description Parts Supply
1 75.8BW01G002
ASSY OSRAM LAMP DRIVER O3 MID
230W(Gen5_Panyu+E20.8) (P5271)
V
1 75.8EP01G001
ASSY OSRAM O3 PRO Lamp Driver (CODE:
A61494F00DG) (P5290/P5390W)
V
2 51.8BV04H001 LAMP DRIVER HOLDER P5271
3 42.00425G001
W.A. 5P #28 100mm MAIN BOARD/LAMP DRIVER
1409X
V
4 42.0043MG001 LAMP CONNECTOR SOCKET P5271
5 51.8BV01G001 LAMP DRIVER ISOLATED MYLAR P5271
6 85.1A123G040 SCREW PAN MECH M3*4 Ni

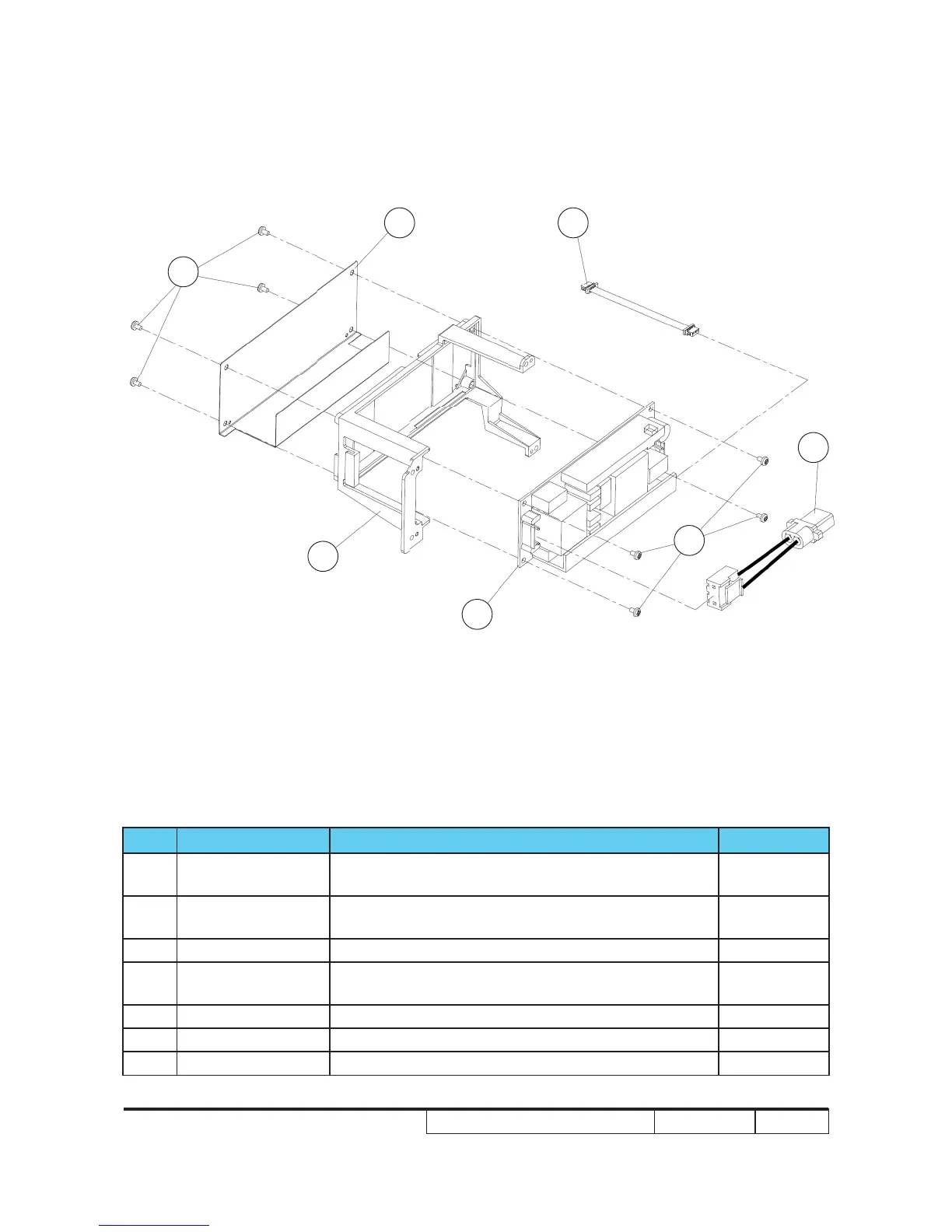

ASSY LAMP DRIVER MODULE
4
3 5
6
2
1
6
