P5271/P5290/P5390W/P5271i
Condential
IX
Item P/N Description Parts Supply
70.8BV39GR01 ASSY MAIN BOARD MODULE P5271(SERVICE) V
70.8EP09GR01 ASSY MAIN BOARD MODULE P5290(SERVICE) V
1 80.8EP01G001 PCBA MAIN BD FOR P5290
2 61.8BV06H002 MAIN BOARD SHIELDING BOTTOM P5271i
3 61.8BV07H001 MAIN BOARD SHIELDING TOP P5271
4 61.8BV15H001
MAIN BOARD SHIELDING BOTTOM BRACKET
P5271
5 51.81541G001 TAPE 3M J350 17*30mm
6 41.83R07G001 EMI GASKET W7*H7*L50mm
7 41.83J02G001 EMI GASKET W5*H1.0*L245mm PD527
8 41.81H03G001 EMI GASKET FOR DVI CONNECTOR
9 41.83J07G001 EMI TAPE W5*H1.0*L11mm PD527
10 41.82G03G001 EMI GASKET USB CONNECTOR EP719
11 51.81542G001 TAPE 3M J350 17*15mm
12 51.81542G001 TAPE 3M J350 17*15mm
13 41.89K06G001 EMI TAPE W50*L120

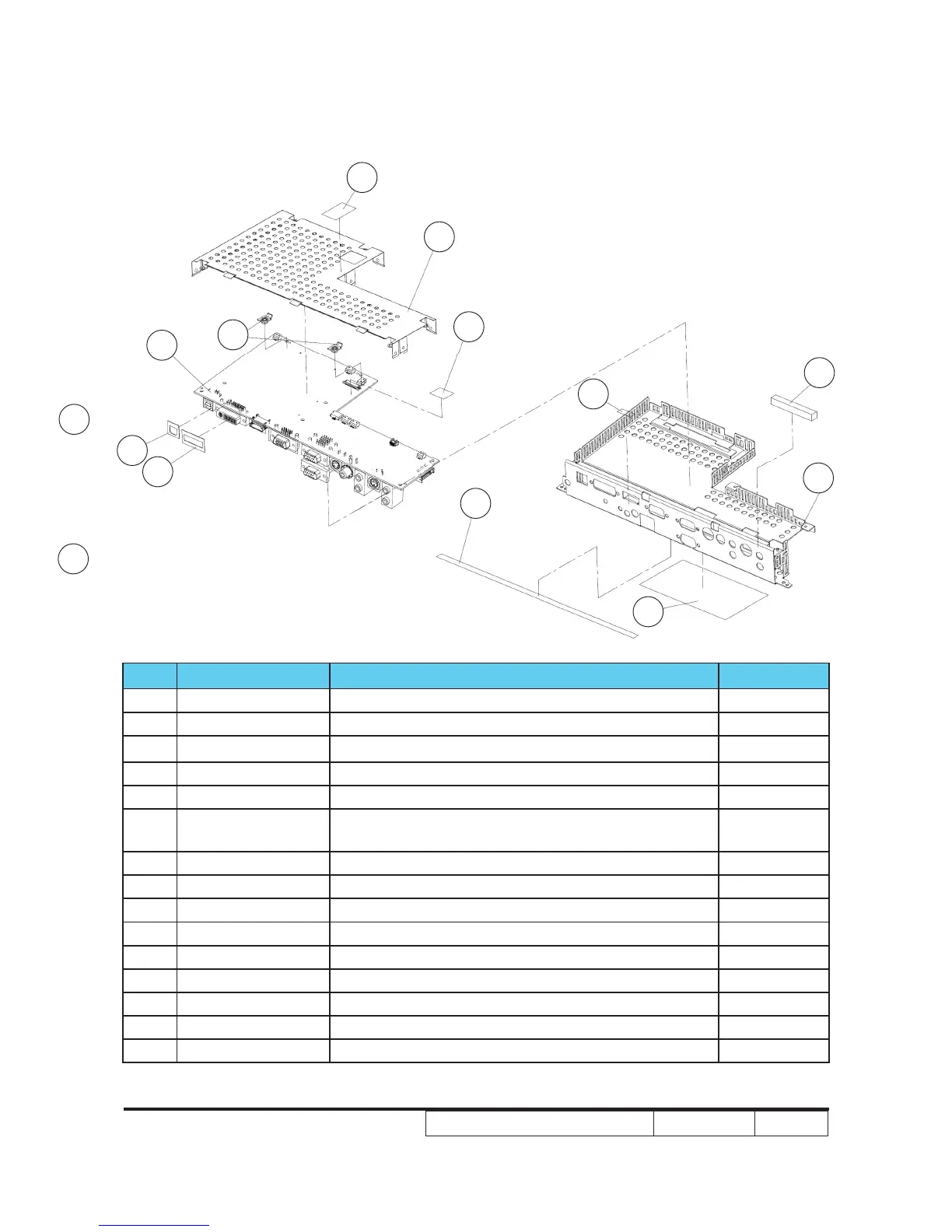

ASSY MAIN BOARD MODULE
13
4
1
8
7
9
6
2
3
5
10
11
12
3
