ACT ACTsmart2 Series User Manual

ACTsmart2 Operating and Installation Manual Rev. 2
Copyright © 2015 Access Control Technology Ltd.
TAMP
1 2
12- 24V
0V
N/O
COM
N/C
B
A
AUX
I/O2
Prog I/P
Aux I/O1
LK 2
LK 1
Door 1 Release Button
Important!
Always Place Varistor Across Lock Terminals
+12V
0V
Note:
To program the various Input and Output operations for the ACTsmart2 unit, please refer to the manual.
This illustration shows wiring for normally de-energised locks. If normally energised locks are required, use the N/C relay contact.
The ACTsmart2 may be powered from 12 or 24V AC or DC for Standalone operation.
Default configuration
for Programmable Input
is Door Release Button.
Door 2 Release Button
Door 1
Door 2
N/C
COMM
N/O
+12V
+12V
0V
External Relay
Diode IN4001 or equivalent
Power Supply Unit

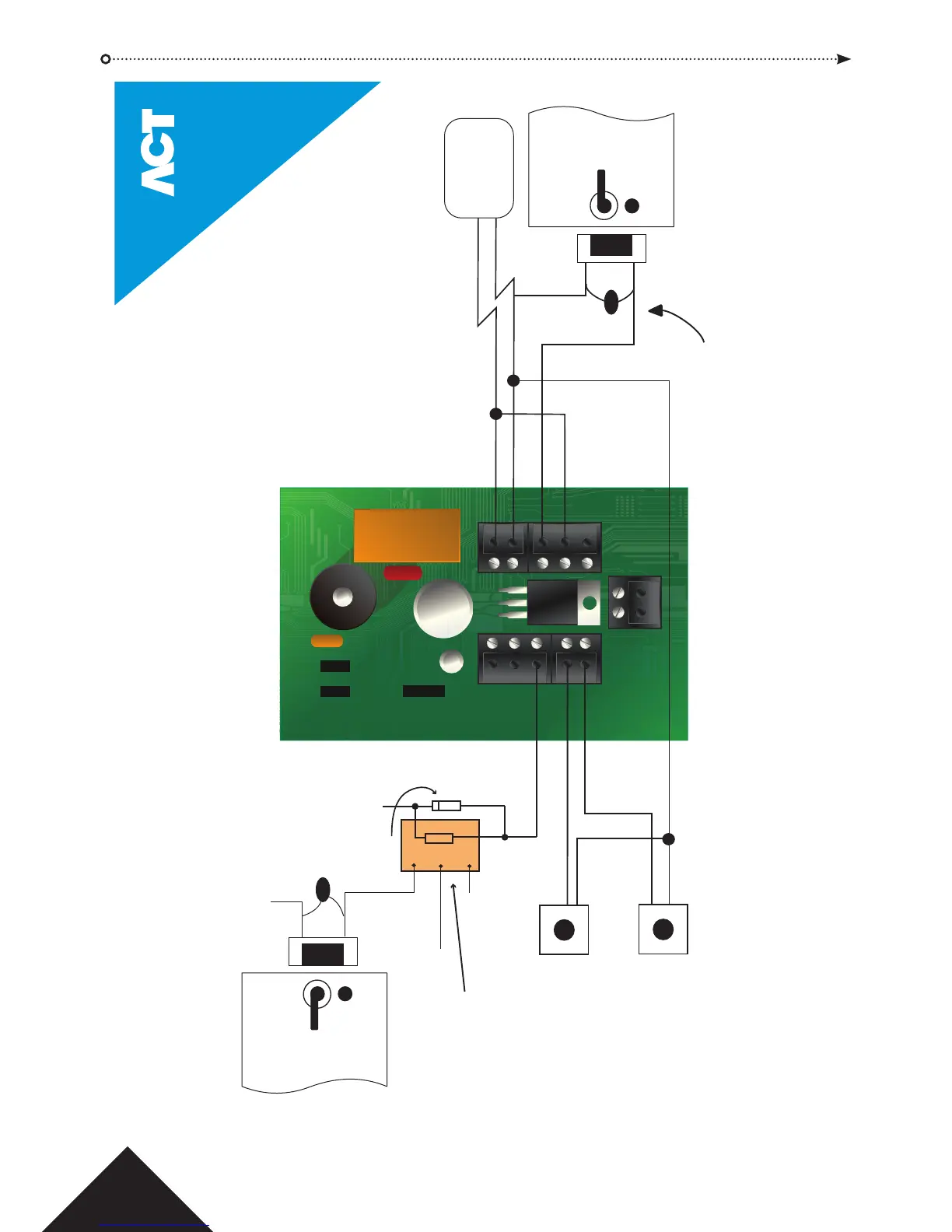

2 Door Wiring Diagram
