ACT apricot - Page 130

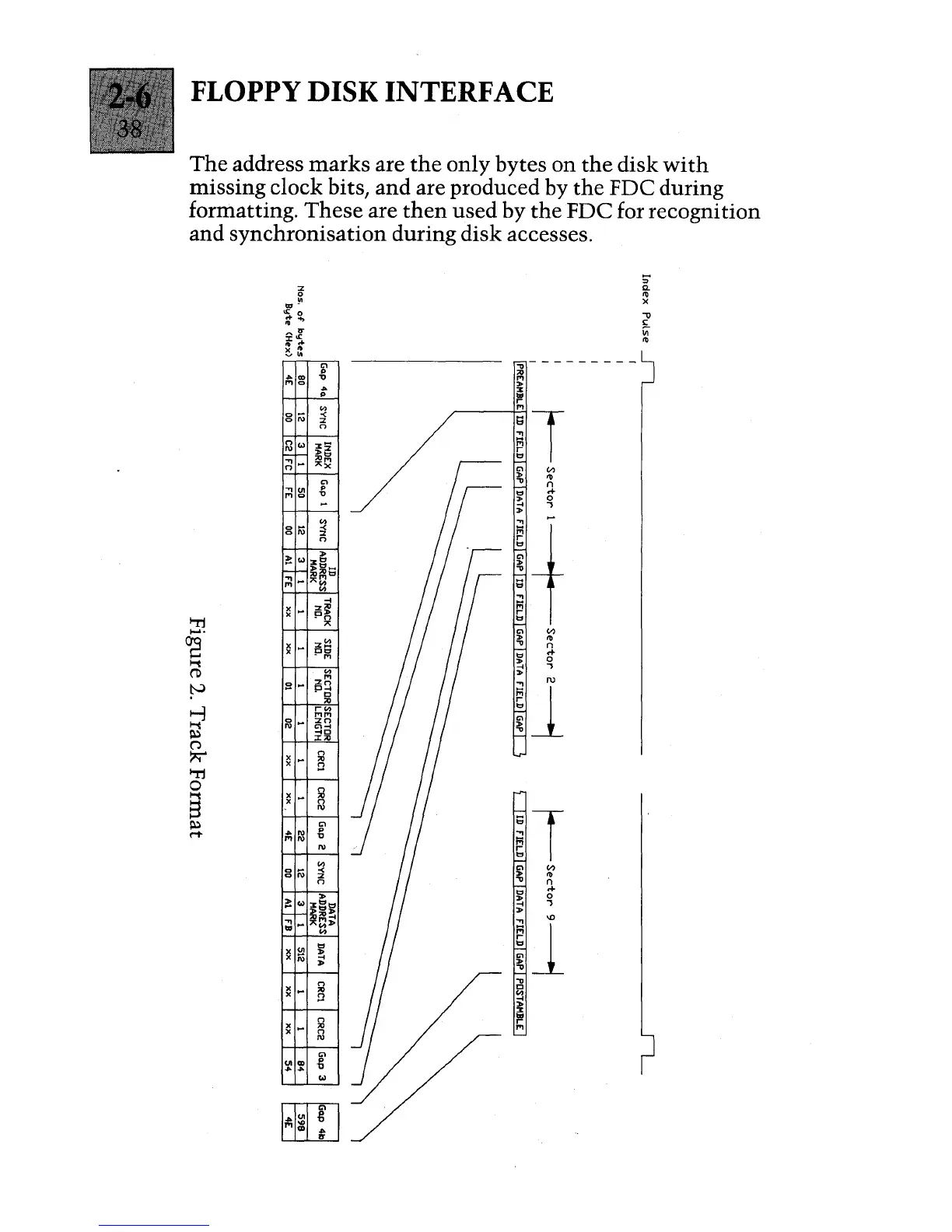

FLOPPY DISK INTERFACE
The address marks are the only bytes on the disk with
missing clock bits, and are produced by the FDC during
formatting.
These are then used by the FDC for recognition
and synchronisation during disk accesses.
