SYSTEM
UNIT
1.
Disk Drive
2.
Power Supply
3.
Motherboard
4.
AC Sub-Assembly
5.
Main Chassis
6.
Chassis Bridge
7.
Expansion Slots
8.
Loudspeaker

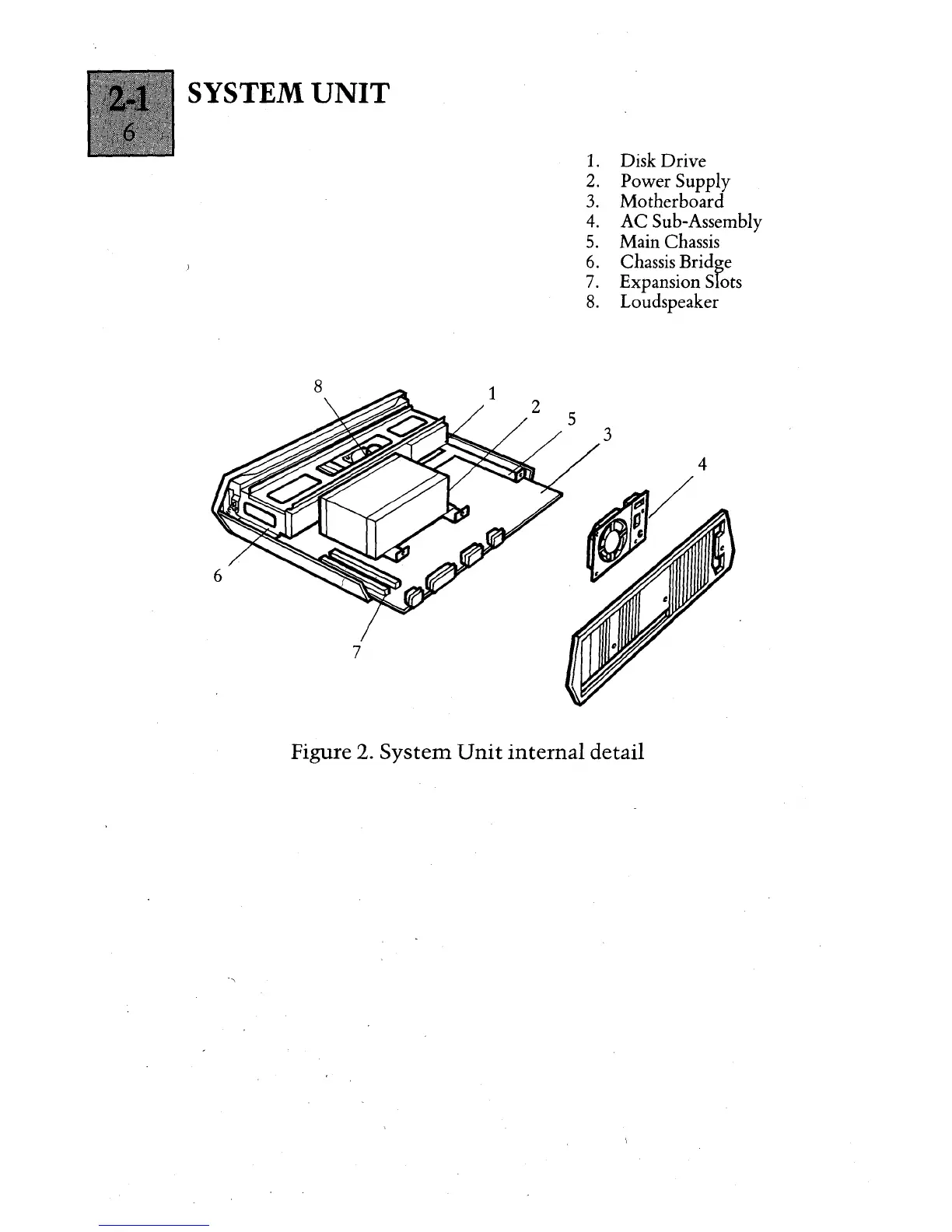

Figure 2.
System
Unit
internal
detail
