ACT apricot - System Unit; Physical Dimensions

SYSTEM UNIT
PHYSICAL DIMENSIONS
5
Height: 4.0 inches
Width: 16.5 inches
Depth: 12.5 inches
Weight: 14.2lbs (Dual disk drive version, single disk
drive version, 1.5lbs less).
2
1
~4
9 8
1. Systems Base
2. Systems Cover
3. Rear Panel
4. Facia Bezel
5. Door
6. Expansion Plates
7. Handle
8. Base Clip
9. Base Button
10. Keyboard Cable Clips

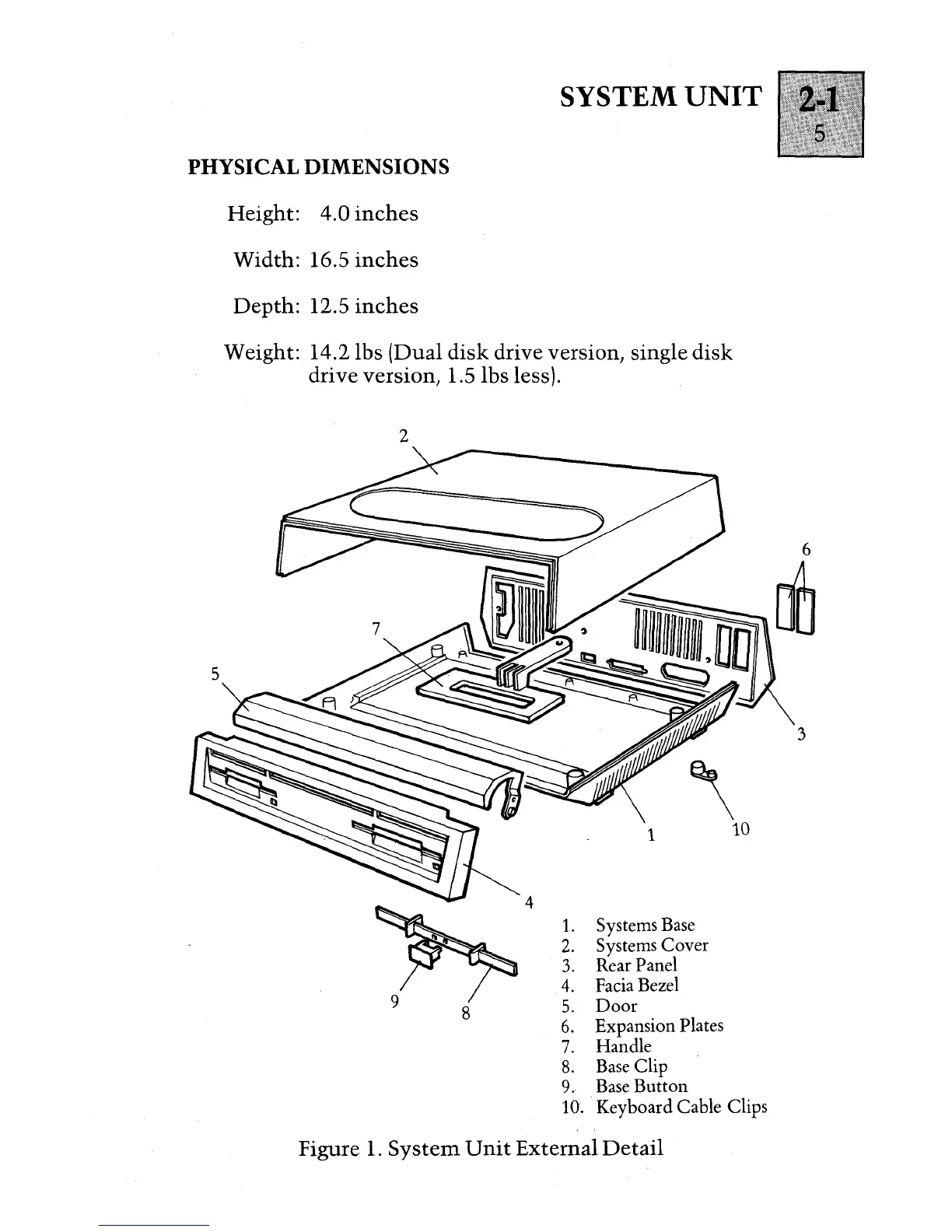

Figure 1. System Unit External Detail
6
3
