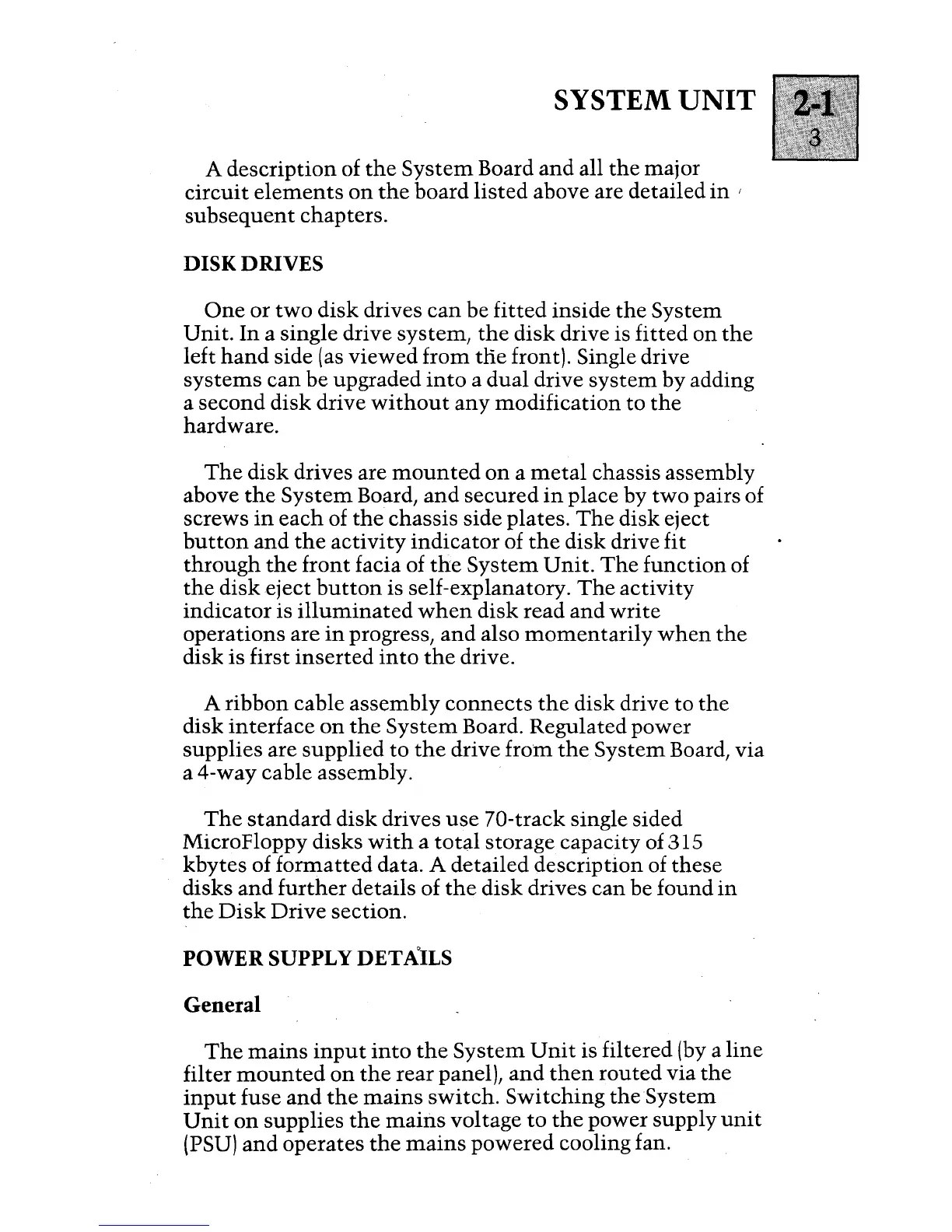

SYSTEM
UNIT
A description of
the
System
Board
and
all
the
major
circuit
elements
on
the
board
listed
above are detailed
in
I
subsequent
chapters.
DISK DRIVES
One
or
two
disk
drives
can
be fitted inside
the
System
Unit.
In
a single drive system,
the
disk
drive is fitted
on
the
left
hand
side
(as
viewed from tile front). Single drive
systems
can
be upgraded
into
a
dual
drive
system
by adding
a second disk drive
without
any
modification to
the
hardware.
The
disk
drives are
mounted
on
a
metal
chassis assembly
above
the
System
Board,
and
secured
in
place by
two
pairs of
screws
in
each
of
the
chassis side plates.
The
disk eject
button
and
the
activity
indicator
of
the
disk drive fit
through
the
front facia of
the
System
Unit.
The
function
of
the
disk
eject
button
is self-explanatory.
The
activity
indicator
is
illuminated
when
disk
read
and
write
operations are
in
progress,
and
also
momentarily
when
the
disk is first
inserted
into
the
drive.
A ribbon cable assembly
connects
the
disk drive to
the
disk interface
on
the
System
Board. Regulated power
supplies are supplied to
the
drive
from
the
System
Board, via
a 4-way cable assembly.
The
standard
disk drives
use
70-track single sided
MicroFloppy disks
with
a
total
storage capacity of 315
kbytes of
formatted
data. A detailed description of these
disks
and
further
details of
the
disk
drives
can
be found
in
the
Disk
Drive
section.
POWER SUPPLY DETAILS
General
The
mains
input
into
the
System
Unit
is filtered
(by
a
line
filter
mounted
on
the
rear panel),
and
then
routed
via
the
input
fuse
and
the
mains
switch.
Switching
the
System
Unit
on
supplies
the
mains
voltage
to
the
power supply
unit
(PSU)
and
operates
the
mains
powered cooling fan.
