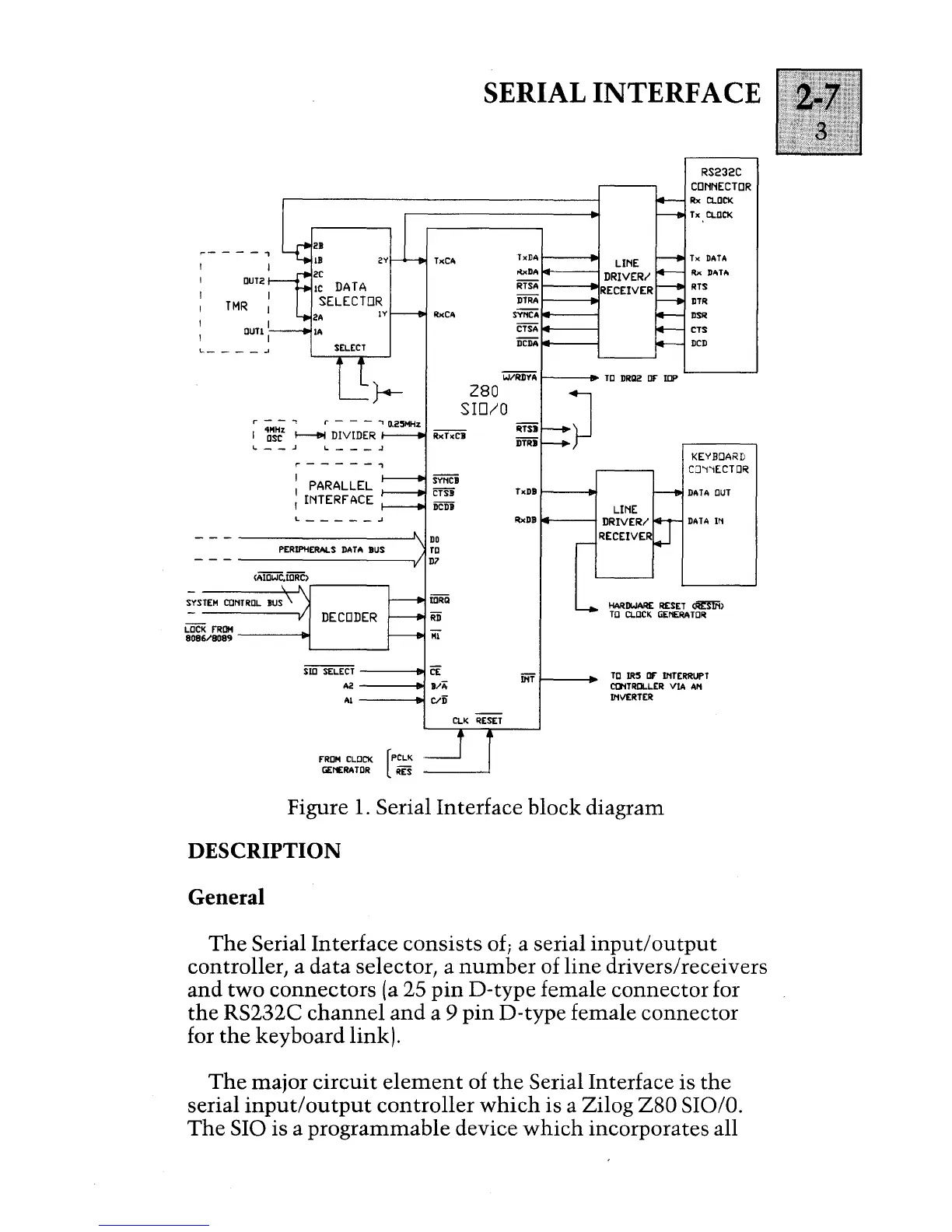

Figure
1.
Serial Interface
block
diagram
DESCRIPTION
General
The
Serial Interface
consists
of; a serial
input/output
controller, a
data
selector, a
number
of
line
drivers/receivers
and
two
connectors
(a
25
pin
D-type
female
connector
for
the
RS232C
channel
and
a 9
pin
D-type
female
connector
for
the
keyboard link).
The
major
circuit
element
of
the
Serial Interface
is
the
serial
input/output
controller
which
is a Zilog
Z80
SIO/O.
The
SIO is a
programmable
device
which
incorporates all
