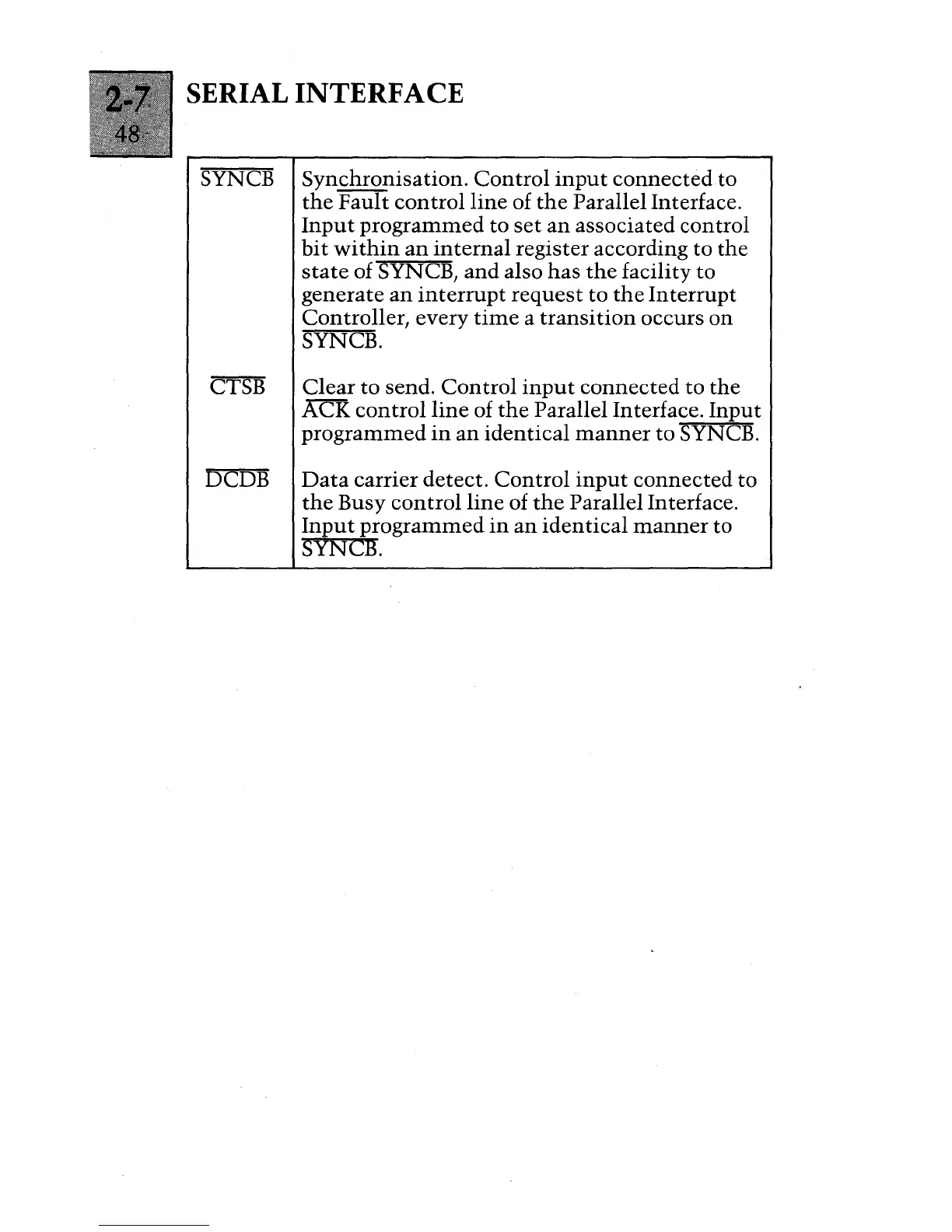

SERIAL INTERFACE
SYNCB
Synchronisation.
Control
input
connected
to
the
Fault
control
line
of
the
Parallel Interface.
Input
programmed
to
set
an
associated control
bit
within
an
internal
register according
to
the
state
of SYNCB,
and
also
has
the
facility
to
generate
an
interrupt
request
to
the
Interrupt
Controller, every
time
a
transition
occurs
on
SYNCB.
CTSB
Clear
to
send.
Control
input
connected
to
the
ACK
control
line
of
the
Parallel Interface.
Input
programmed
in
an
identical
manner
to
SYNCB.
DCDB
Data
carrier detect.
Control
input
connected
to
the
Busy
control
line
of
the
Parallel Interface.
Input
programmed
in
an
identical
manner
to
SYNCB.
