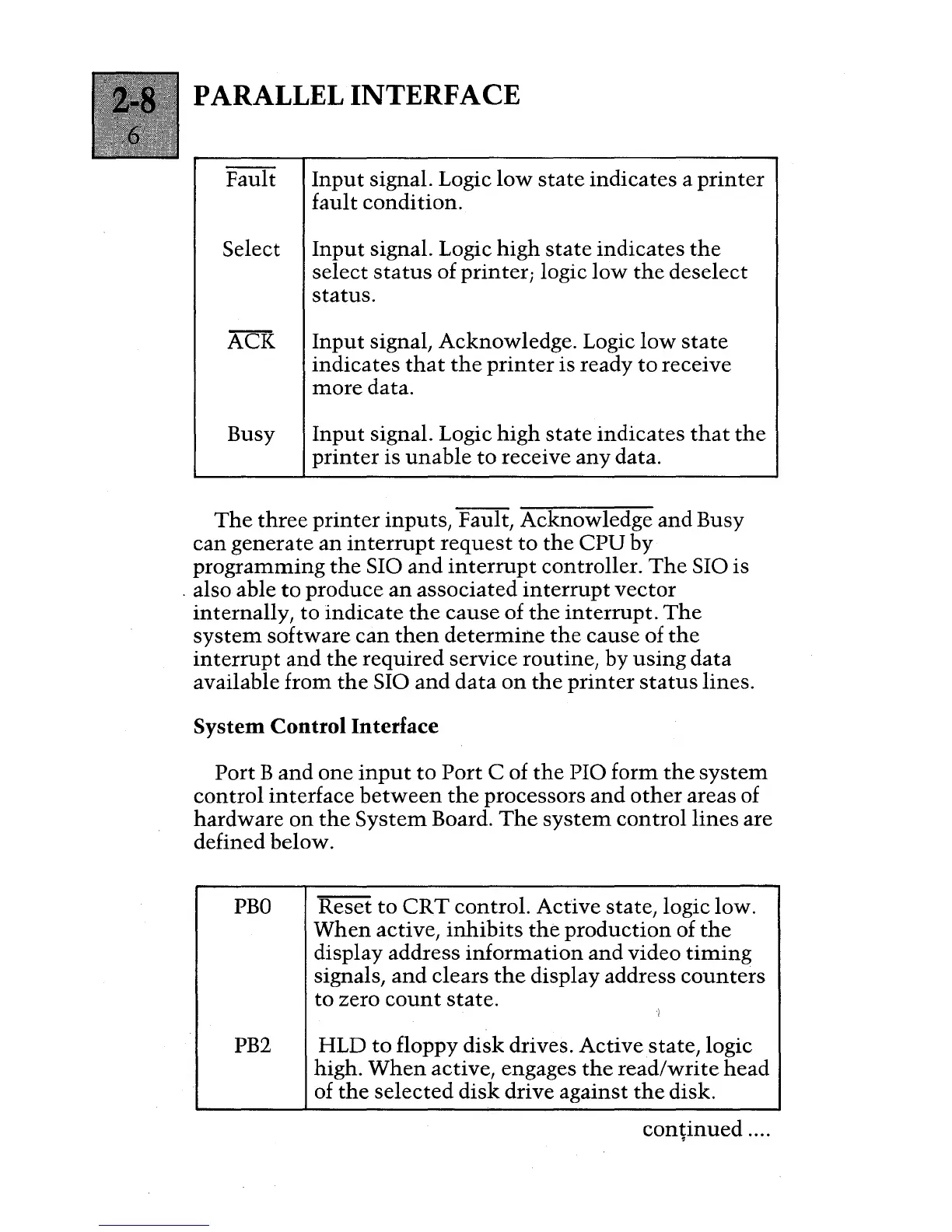

PARALLEL
INTERFACE
Fault
Input
signal. Logic
low
state
indicates a
printer
fault
condition.
Select
Input
signal. Logic
high
state
indicates
the
select
status
of printer; logic
low
the
deselect
status.
ACK
Input
signal, Acknowledge. Logic
low
state
indicates
that
the
printer
is ready
to
receive
more
data.
Busy
Input
signal. Logic
high
state
indicates
that
the
printer
is
unable
to
receive
any
data.
The
three
printer
inputs,
Fault, Acknowledge
and
Busy
can
generate
an
interrupt
request
to
the
CPU
by
programming
the
SIO
and
interrupt
controller.
The
SIO is
. also able
to
produce
an
associated
interrupt
vector
internally,
to
indicate
the
cause of
the
interrupt.
The
system
software
can
then
determine
the
cause of
the
interrupt
and
the
required
service routine, by
using
data
available
from
the
SIO
and
data
on
the
printer
status
lines.
System
Control Interface
Port B
and
one
input
to
Port
C of
the
PIO
form
the
system
control
interface
between
the
processors
and
other
areas of
hardware
on
the
System
Board.
The
system
control
lines
are
defined below.
PBO
Reset
to
CRT
control. Active state, logic low.
When
active,
inhibits
the
production
of
the
display address
information
and
video
timing
signals,
and
clears
the
display address
counters
to
zero
count
state.
PB2
HLD
to
floppy
disk
drives.
Active
state,
logic
high.
When
active, engages
the
read/write
head
of
the
selected
disk
drive against
the
disk.
continued
....
