KEYBOARD
1. Keyboard Bezel
2. Keyboard Base
3. Battery Cover
4. Contrast Wheel
5. Reset Button
6. Reset Plate
5
4~~
6
1. Keyboard Assembly
2. Keyboard Cable
3. Battery Connector
4. Battery
5. Reset Switch
6. Brightness Control
7. LCD Microscreen
3

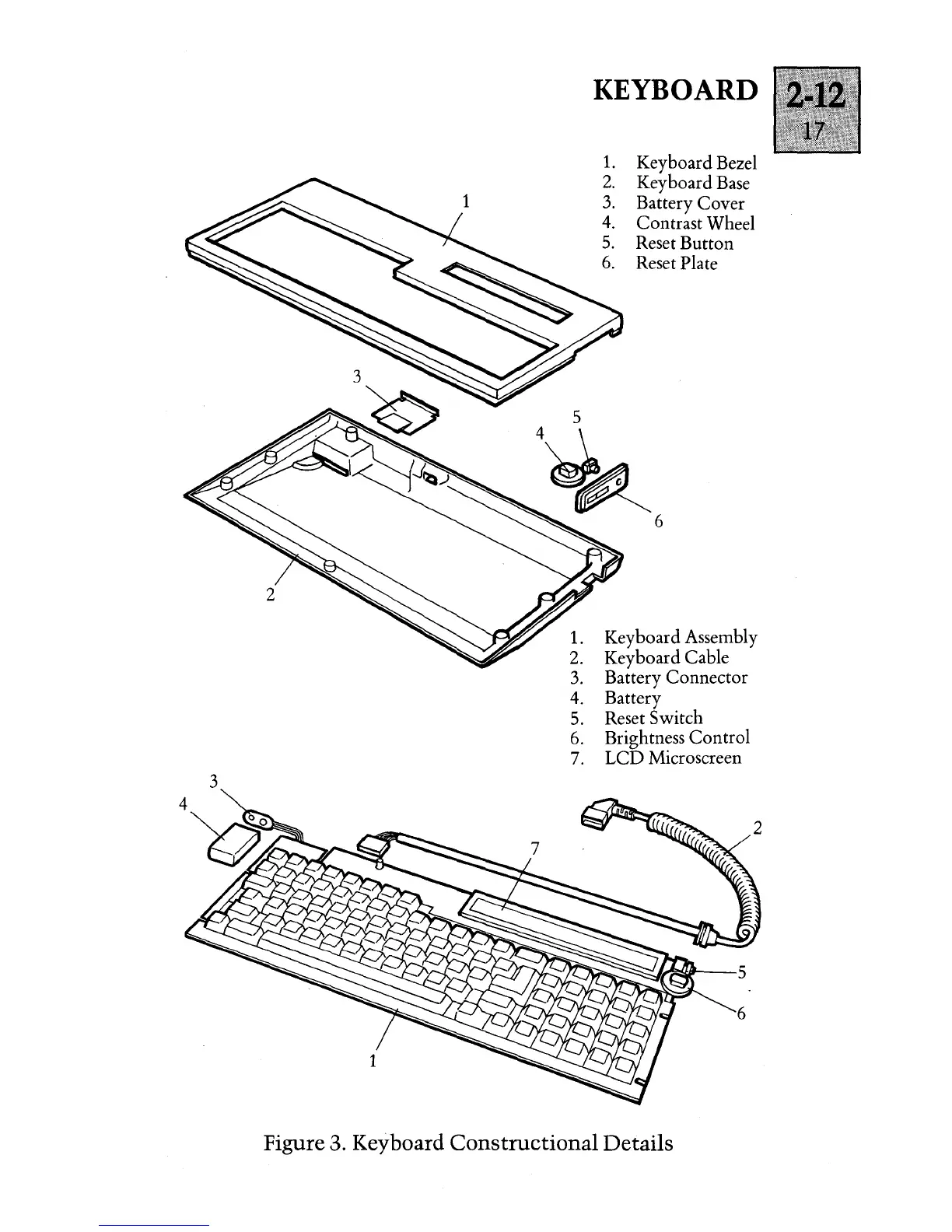

Figure 3. Keyboard Constructional Details
