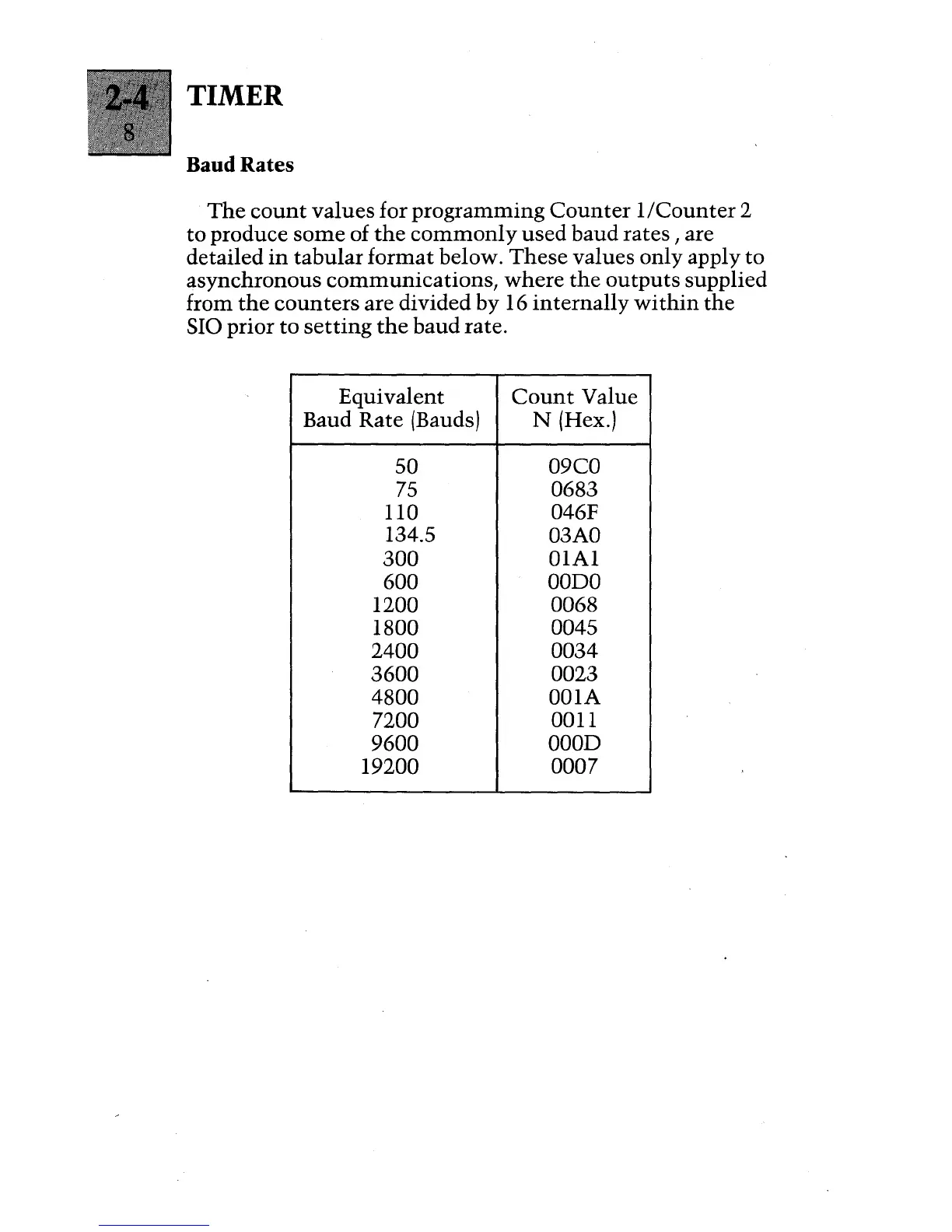

TIMER
Baud Rates
The count values for programming Counter l/Counter 2
to produce some of the commonly used baud rates, are
detailed
in tabular format below. These values only apply to
asynchronous communications, where the outputs supplied
from the counters are divided by 16 internally within the
SIO prior to setting the baud rate.
Equivalent Count Value
Baud Rate (Bauds) N(Hex.)
50 09CO
75
0683
110
046F
134.5
03AO
300
01Al
600
OODO
1200
0068
1800
0045
2400 0034
3600
0023
4800
001A
7200
0011
9600
OOOD
19200
0007
