Actia BOP xD - Door Camera; Relay Outputs

Web Interface
© 2018 ACTIA I+ME GmbH │ Ref. IR:14938 67 / 92
Priority
If simultaneous switching to the door and reversing cameras is necessary, the
camera with the higher priority is displayed.
Caution - Physical injuries
The reversing camera is not a reversing aid and may not
be used for this purpose any under circumstances.
It does not replace or supplement the measures that have
to be taken into account during reverse driving.
12.5.5.5 Door Camera
Indicates the door camera and its display priority.
 0 = No door camera available
 1 .. 8 = Video input for the door camera
Priority
If simultaneous switching to the door and reversing cameras is necessary, the
camera with the higher priority is displayed.
12.5.5.6 Relay Outputs
Messages or the system status can be transmitted to external units via the relays.

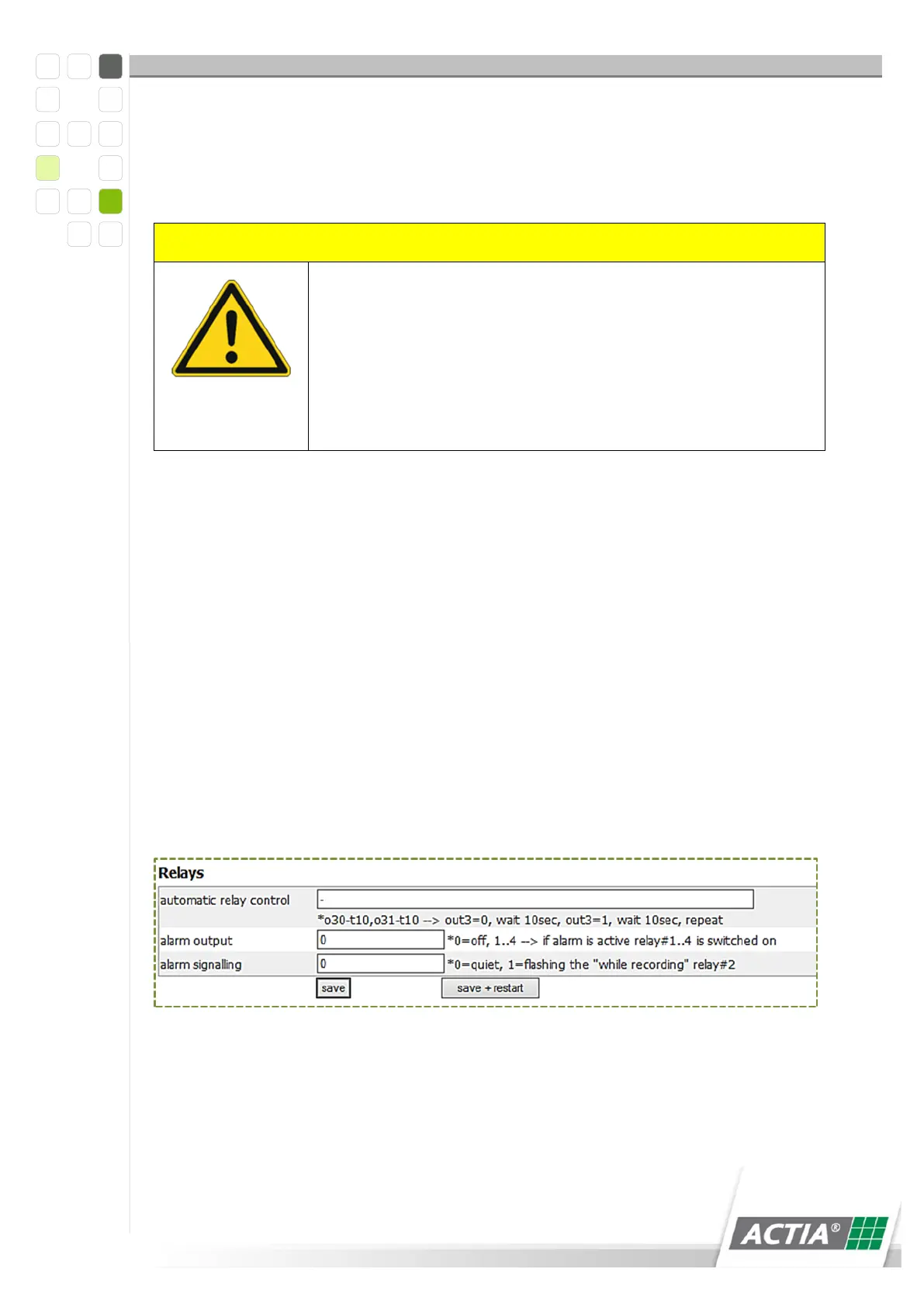

Figure 28) Relays
Default relay functionality:
Relay 1: BOP active relay. Closed when BOP is started. It is only open when BOP is
switched off.
