16.2.2 Thetford Cassette C-260 S
The cassette (Fig. 106/1) has a capacity of 18 l and should be emptied when the level indicator
(Fig. 101/4) lights. Do not allow the cassette to become overfilled.
16.2.3 Thetford Cassette C-402 C and C-403 L
The cassette has a capacity of approx. 19 l and should be emptied when the level indicator
(Fig. 102/2) or (Fig. 104/2) lights. Do not allow the cassette to become overfilled.

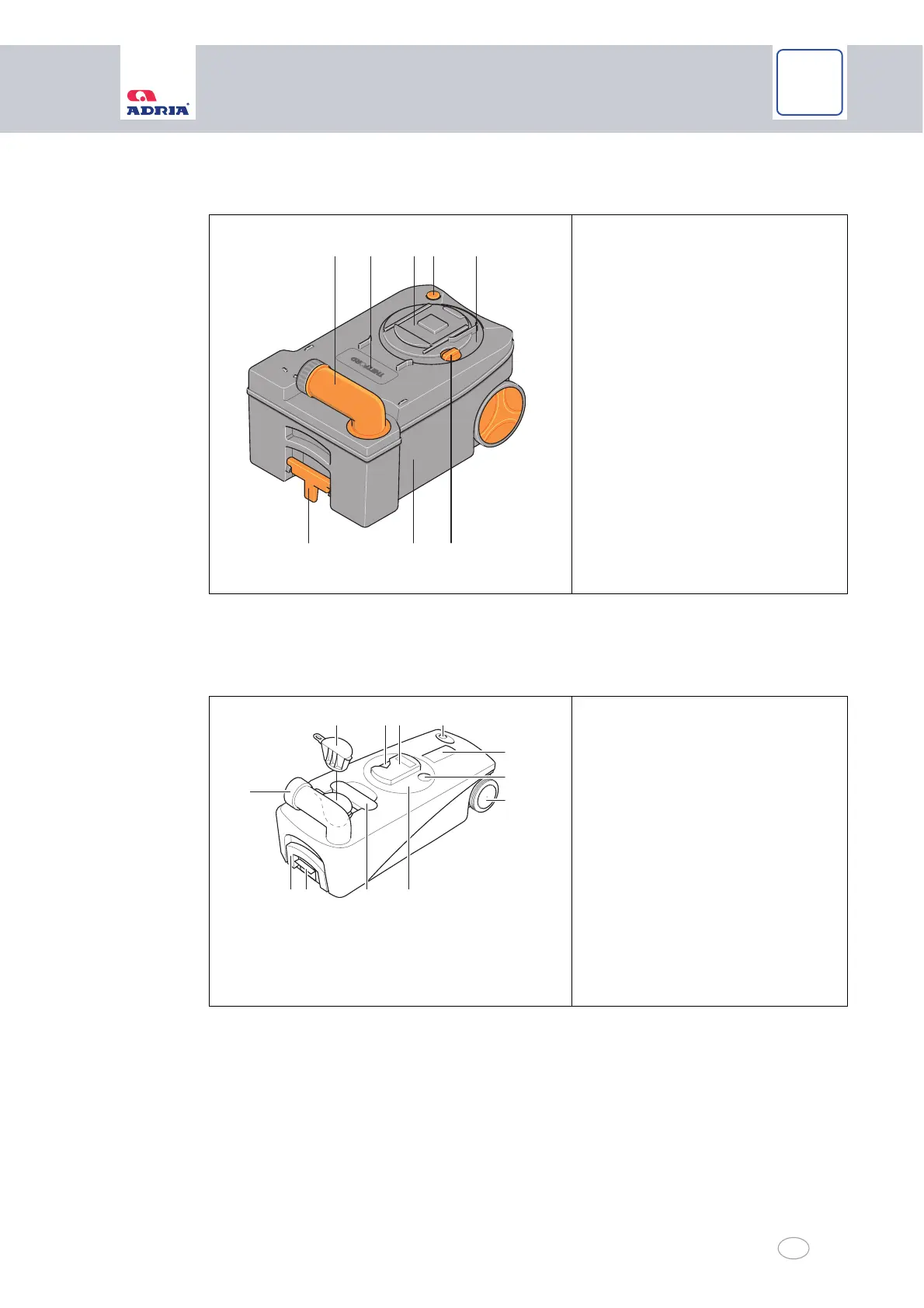

Fig. 106 Thetford Cassette C-260 S
1 Cassette
2 Swivelling emptying spout
3 Automatic holding tank vent
valve
4 Pull-out hand grip / latch
5 Sliding cover
6 Valve blade
7 Vent plunger
8 Removable mechanism
Fig. 107 Thetford Cassette C402 C and C403 L
1 Catch
2 Hand grip, fold-out
3 Swivelling emptying spout
4 Water tank extension (C-402 C)
5 Valve blade
6 Sliding cover
7 Vent plunger
8 Automatic holding tank vent
valve
9 Valve blade opener
10 Wheels
11 Removable mechanism
12 Upper carrying handle
2 75
4
83
1 6
10100034
12
3
4 5 6 7
8
9
10
1112
