8.11.2 TV bracket with ceiling guide rail
Some vehicles are fitted with a TV bracket with ceiling guide rail. The TV (flat screen) can be
mounted on the fastening plate. You can swivel the TV towards the sleeping or living area
when in use.
Sliding the TV out:
 Open the cabinet door(Fig. 43/3).
 Loosen the locking screw (Fig. 43/1) anticlockwise until the TV bracket (Fig. 43/2) can
be easily shifted.
 Pull the TV bracket (Fig. 43/2) towards the middle of the vehicle.
The TV is now ready for use.
Slide the TV back in reverse sequence.
Caution!
Damage to the cables
 Make sure the cables always have enough room to move.
Caution!
Damage to the appliance
 Check all locking grips are engaged before each journey.
 Check the locking screw is tightened before driving.

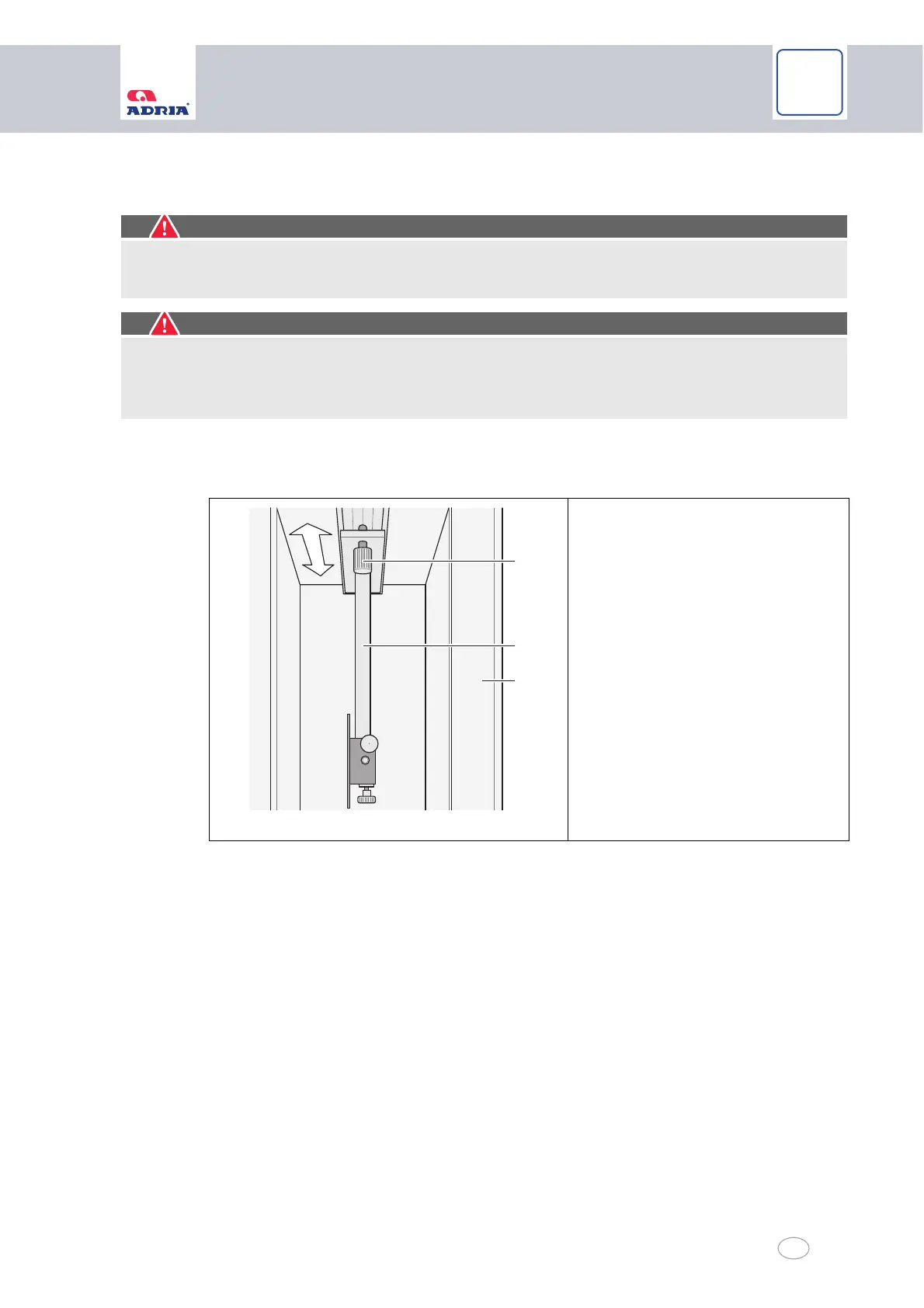

Fig. 43 TV bracket with ceiling guide rail
1 Locking screw
2 TV bracket
3 Cabinet door
