Shifting the TV bracket:
 Loosen the locking screw (Fig. 44/3).
 Shift the TV bracket.
 Tighten the locking screw (Fig. 44/3) by hand.
Turning or swivelling the TV bracket:
 To adjust, pull the locking grip (Fig. 44/1) or (Fig. 44/2) and engage the locking grip
again when finished.
 For continuous freedom of movement, pull the locking grip (Fig. 44/1) or (Fig. 44/2) head
of the locking grip and turn it 90°.
Fastening the TV bracket:
 To engage the TV again, turn the knob of the locking grip (Fig. 44/1) or (Fig. 44/2) again
until the cross pin locks into the groove.
Spring tension snaps the locking grip into the basic setting.
 Turn the mounting plate until parallel to the guide rail.
The locking grip (Fig. 44/1) engages.
 Swivel the mounting plate until vertical. The locking grip (Fig. 44/2) engages.
The locking grips secure the TV against movement.

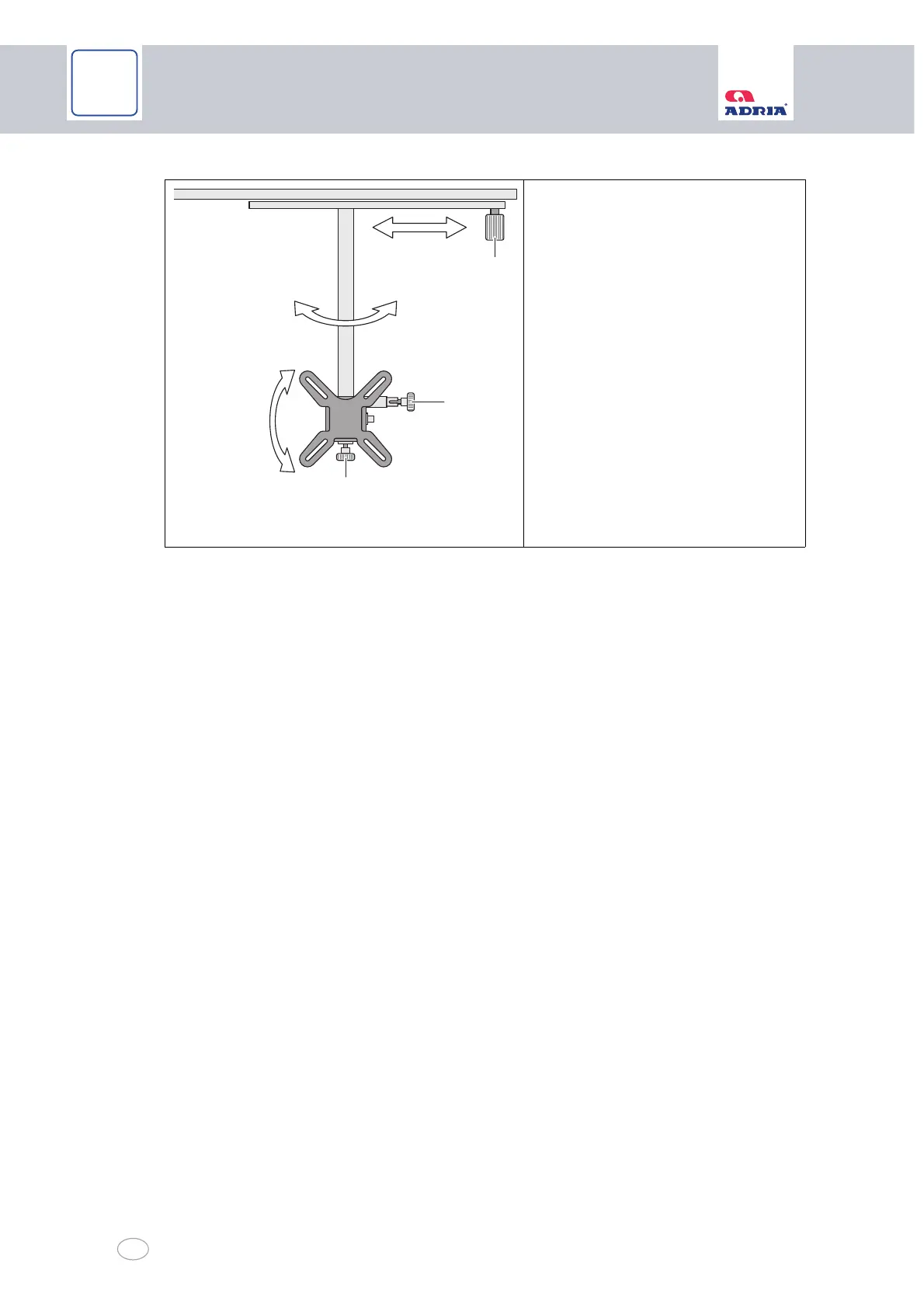

Fig. 44 TV bracket with ceiling guide rail - adjustment
option
1 Locking grip for turning
2 Locking grip for swivelling
3 Locking screw
10100063
2
3
1
