Using the gas appliances:
 Open the respective quick-action stop valve to put the desired gas appliance into serv-
ice.
– Quick-action stop valve closed (Fig. 69/1): The arrows on the quick-action stop valve
are positioned on the gas appliance crosswise to the direction of the gas pipe
(Fig. 69/3).
– Quick-action stop valve open (Fig. 69/2): The arrows on the quick-action stop valve
are positioned in the direction of the gas pipe to the gas appliance (Fig. 69/3).
11.6.1 Quick-action stop valves of heater, refrigerator, cooker and
oven
Each gas appliance has its own quick-action stop valve.
These are marked with suitable symbols to prevent mistakes:
• Heater (Fig. 70/1)
• Refrigerator (Fig. 70/2)
• Cooker (Fig. 70/3)
• Oven (Fig. 70/4)

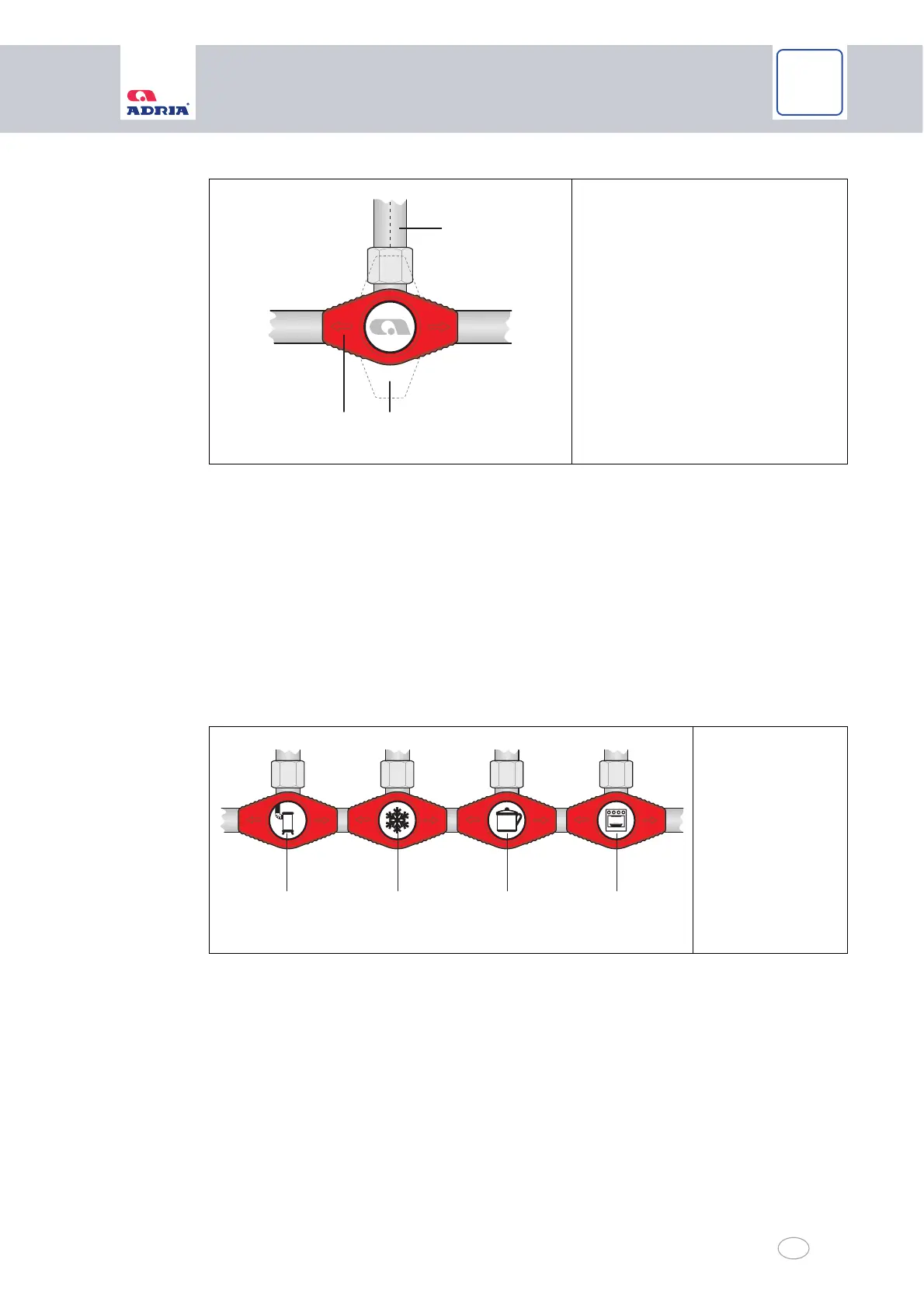

Fig. 69 Quick-action stop valves - positions
1 Closed
2 Open
3 Gas pipe to the gas appliance
Fig. 70 Quick-action stop valves of heater, refrigerator, cooker and oven
1 Heater
2 Refrigerator
3 Cooker
4 Oven
