Adria caravan - Roof Hood with Operating Bar (Special Equipment); Roof Hood with Crank Operation (Special Equipment)

GB
Living in the caravan
8
40 Adria Caravans
8.5.2 Roof hood with operating bar (special equipment)
The roof hood with operating bar can be opened by tilting to one side.
Opening the roof hood:
 To open the glass dome (Fig. 23/1), press the locking button (Fig. 23/2) and pull the bar
(Fig. 23/3) downwards.
 Push the bar (Fig. 23/3) into the desired position. Possible positions are "Ventilation"
(Fig. 23/5) or "Open" (Fig. 23/6).
Closing the roof hood:
 Push the bar (Fig. 23/3) in the direction of the locking button (Fig. 23/2) to close the roof
hood.
 Press the locking button (Fig. 23/2) and push the bar (Fig. 23/3) into the "Closed" posi-
tion.
8.5.3 Roof hood with crank operation (special equipment)
Opening the roof hood:
Some models are equipped with additional locking levers (Fig. 16).
 To open the glass dome, you first have to fold out the hand crank (Fig. 24/1).
 Turn the hand crank only until a resistance can be felt.
The roof hood is now in the maximum open position.
Any desired interim position is possible.

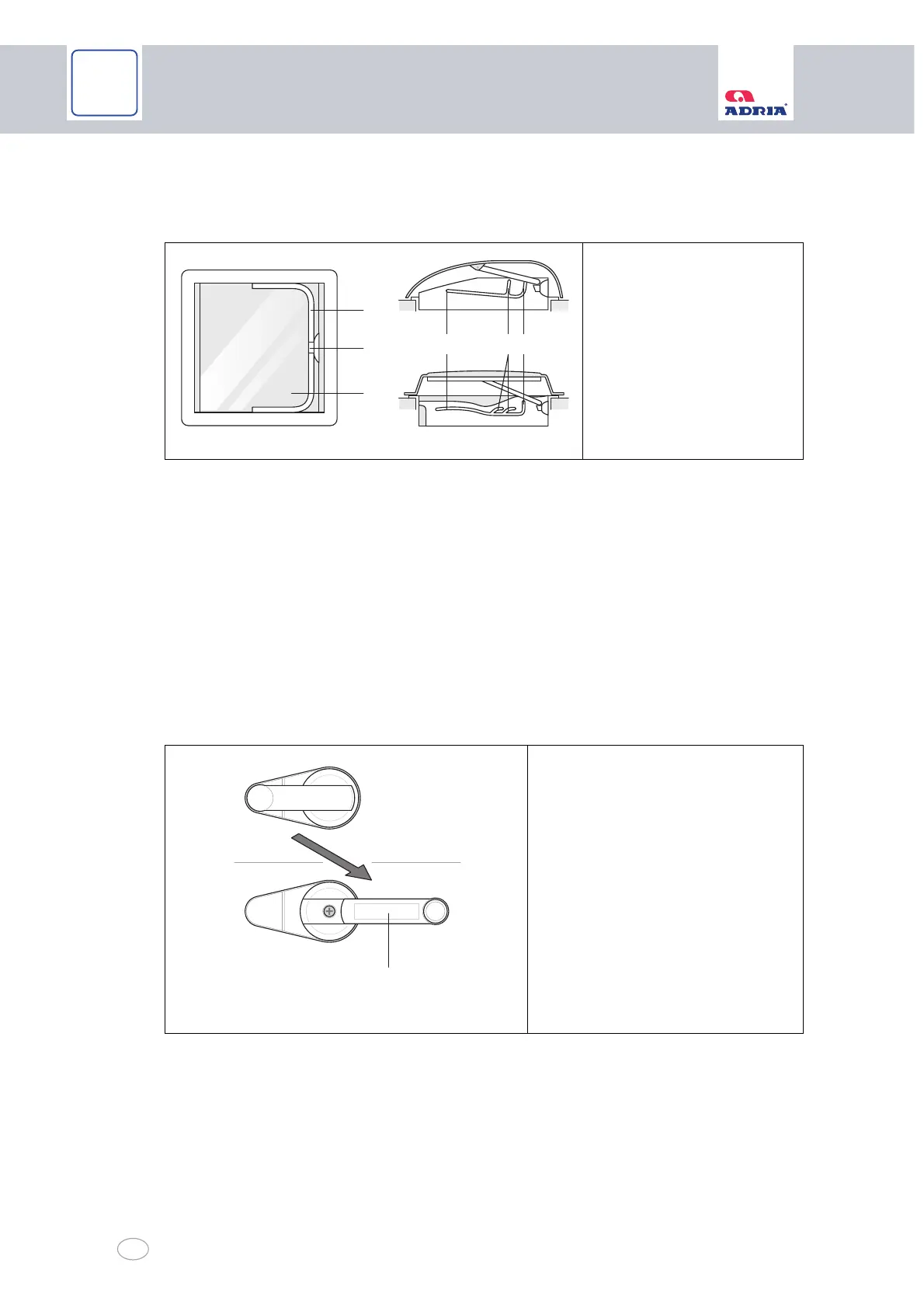

Fig. 23 Opening / closing the roof hood with operating bar
1 Glass dome
2 Locking button
3 Bar
4 "Closed" position
5 "Ventilation" position
6 "Open" position
Fig. 24 Opening / closing the roof hood with crank
operation
1 Hand crank
456
1
2
3
1
