8.11.3 TV bracket with wall mounting
Some vehicles are fitted with a TV bracket with wall mounting. The TV (flat screen) can be
mounted on the fastening plate. You can swivel the TV towards the sleeping or living area
when in use.
Loosening the TV:
 Loosen the locking screw (Fig. 45/2) and turn it out completely.
 Take the locking bracket (Fig. 45/3) off.
 Swivel the joint (Fig. 45/1) out of the basic setting.
 Attach the locking bracket (Fig. 45/3).
 Turn in the locking screw (Fig. 45/2) and fasten by hand.
The TV is now ready for use.
Secure the TV in reverse sequence.
Caution!
Damage to the cables
 Make sure the cables always have enough room to move.
Caution!
Damage to the appliance
 Check the TV bracket is secured with the locking bracket and locking screw before driv-
ing.

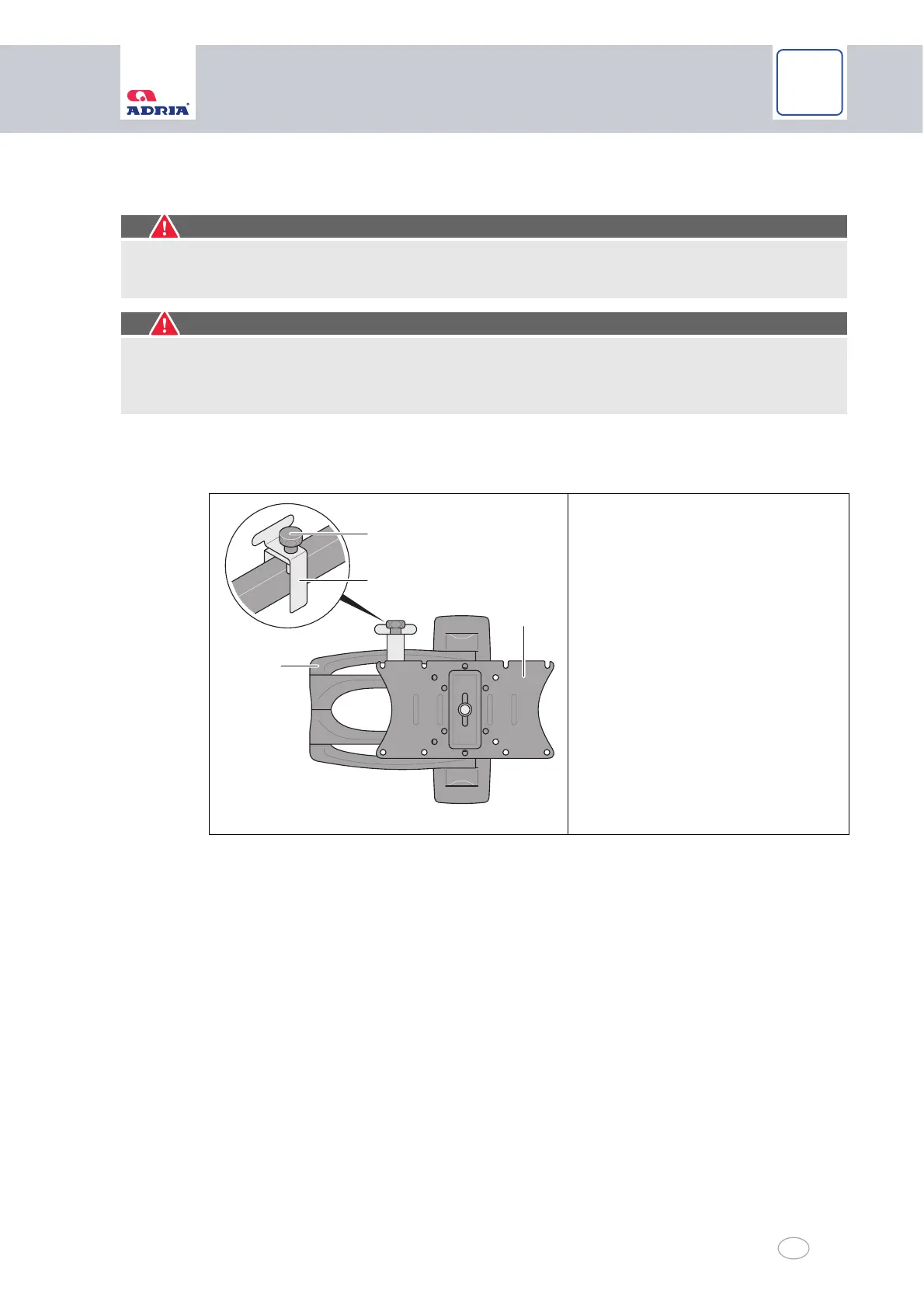

Fig. 45 TV bracket with wall mounting
1 Joint
2 Locking screw
3 Locking bracket
4 Fastening plate
