 Roll out the slatted frame (Fig. 50/1).
 Lay the mattress on the frame (not shown).
 Fix the guard against falling (Fig. 50/2) on the vehicle ceiling with the buckle latches
(Fig. 50/3).
Closing the foldaway bed:
 Close the foldaway bed wall unit in reverse sequence.
9.2 Lowering the table
9.2.1 Suspended table
 Slightly lift the table top (Fig. 51/1) by the free end (approx. 30°). This unlocks the catch
(Fig. 51/3).
 Lift the table top (Fig. 51/1) out of the upper attachment rail (Fig. 51/4).

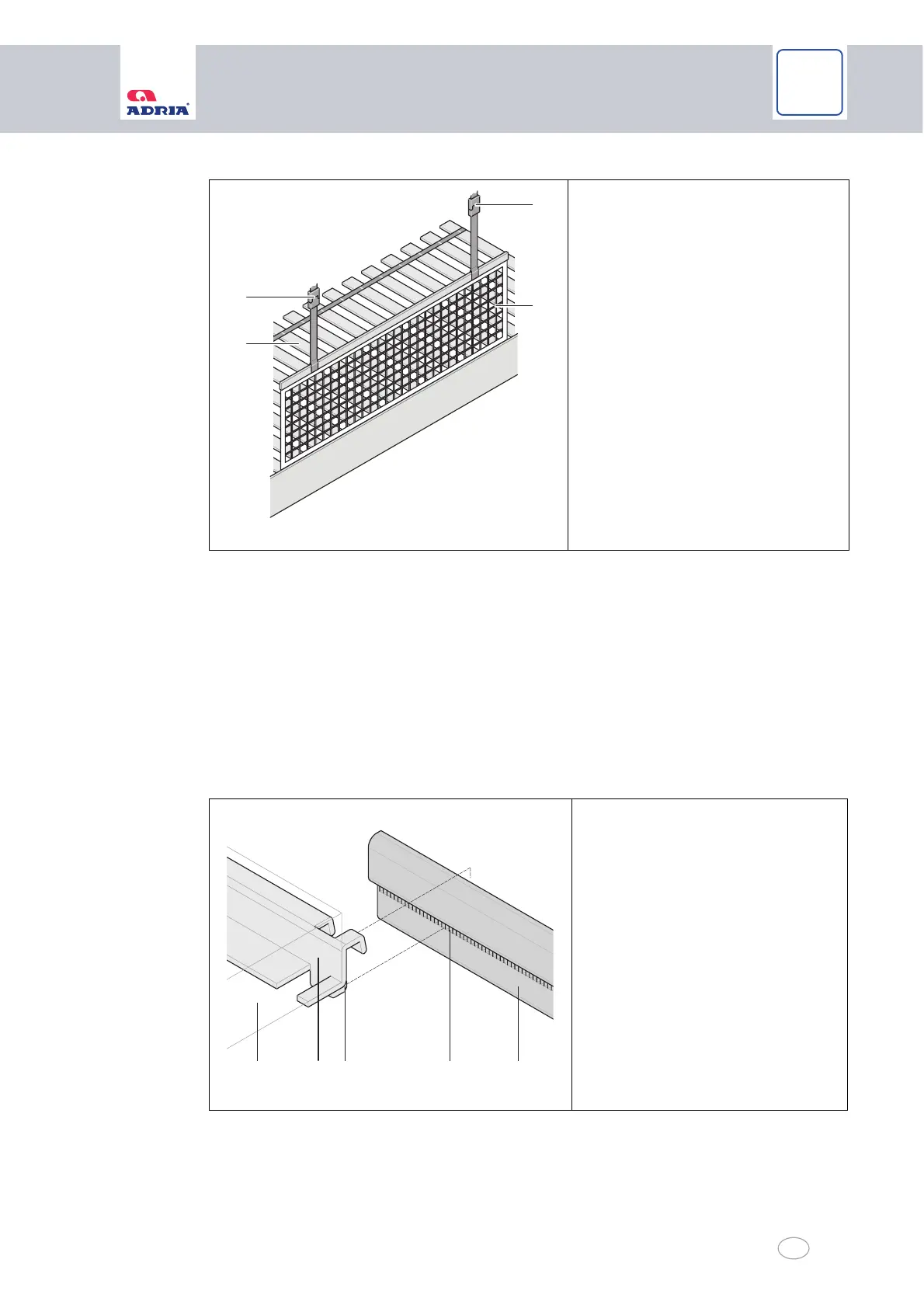

Fig. 50 Opening the foldaway bed wall unit
1 Slatted frame
2 Guard against falling
3 Buckle latch of guard belts
Fig. 51 Lowering the table
1 Table top
2 Table attachment rail
3 Attachment rail catch
4 Attachment rail wall
