8.3 Hinged windows
8.3.1 General
The hinged windows of the caravan have a locking device, i.e. the hinged window automati-
cally locks into place in the desired position after opening.
The number of locking levers at the bottom edge of the window varies depending on the win-
dow width.
Opening the window:
Open the two locking levers (Fig. 15/1) on the hold-open hinges (Fig. 15/3) first.
Then open the locking levers (Fig. 15/2) on the bottom edge of the window.
Push the window to the outside until it has the desired opening width.
Closing the window:
With automatic hold-open hinges, open the window until the lock is released.
First close the locking levers on the bottom edge of the window.
Afterwards, close the locking levers on the hold-open hinges.

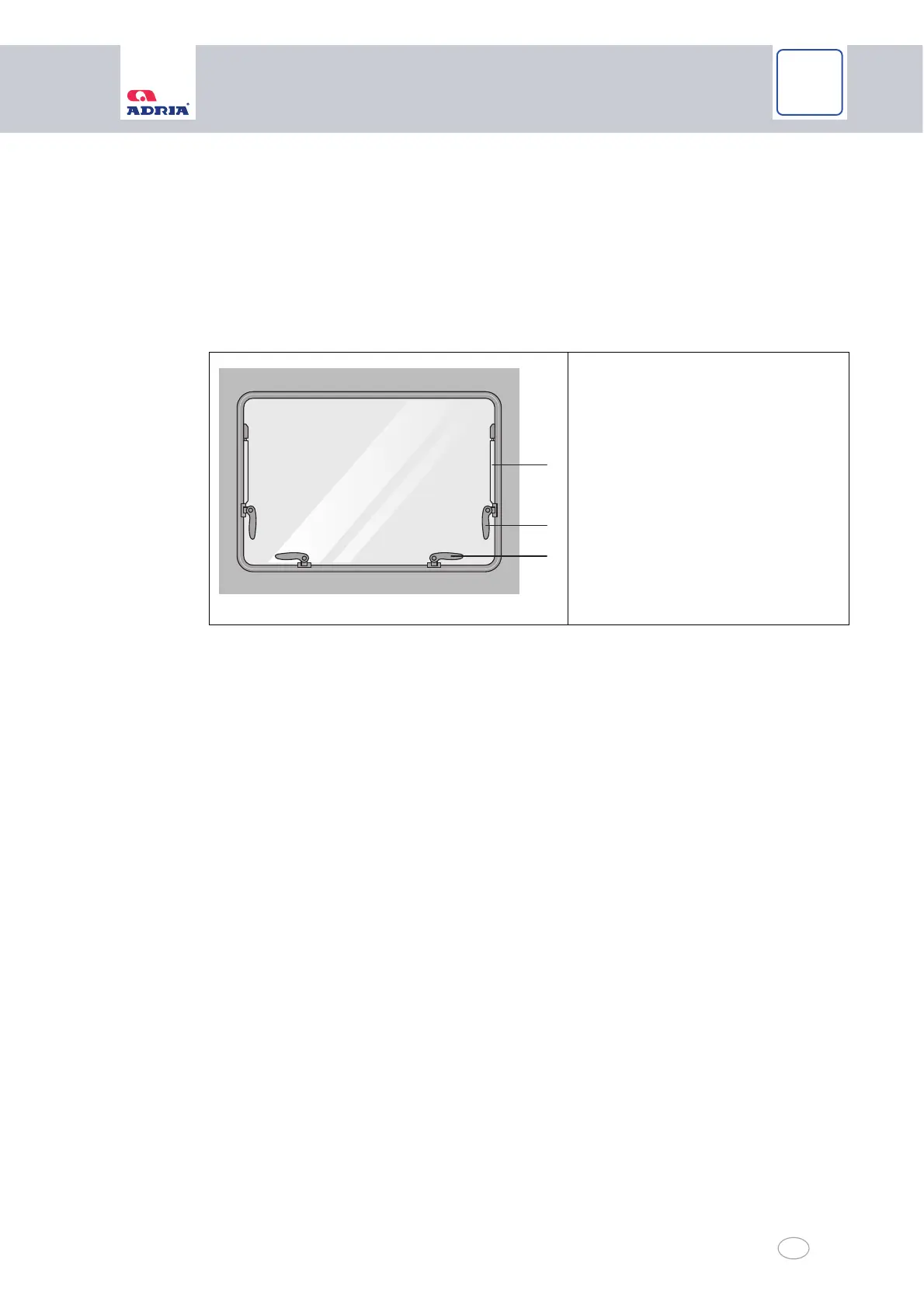

Fig. 15 Hinged windows
1 Locking lever on hold-open hinge
2 Locking lever at bottom edge of
window
3 Hold-open hinge
