4-50 ADS TRITON+
®
Manual
Editing the AV|Max/Peak Combo Device
This section describes the parameters for the AV|Max/Peak Combo
device.

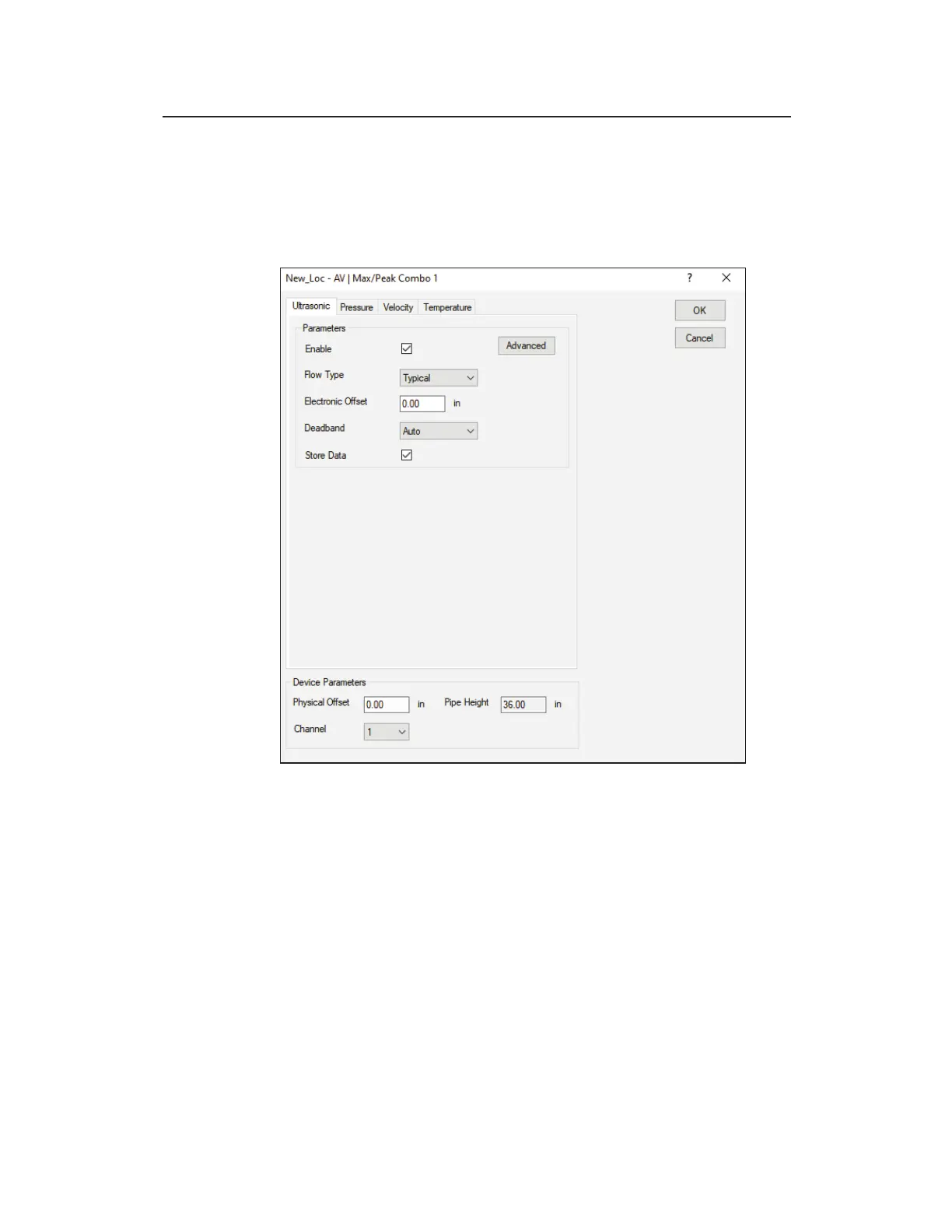

Edit AV|Max/Peak Combo 1 Parameters dialog showing the Ultrasonic tab
Edit the Device Parameters located at the bottom of the dialog,
and then edit the individual tabs as described in the following
sections.
z Physical Offset Enter the measured physical offset for the
sensor at the time of installation if it was installed offset from
the bottom center of the pipe. Refer to Chapter 3, Sensor
Installation and Connection, for instructions on measuring the
physical offset. The default physical offset is 0.
z Channel Select the channel number of the port on top of the
monitor to which the device is physically connected.
