2-6 ADS TRITON+ Manual
dynamic IP address, the user cannot communicate directly with
monitor over the wireless network.
Direct Communication
On-site (or direct) communication with all monitors is available
through an IS USB serial interface (direct connect) cable (ADS p/n
8000-0337) for battery-powered units or through a standard A-to-B
USB cable when using external power.
Processor Board

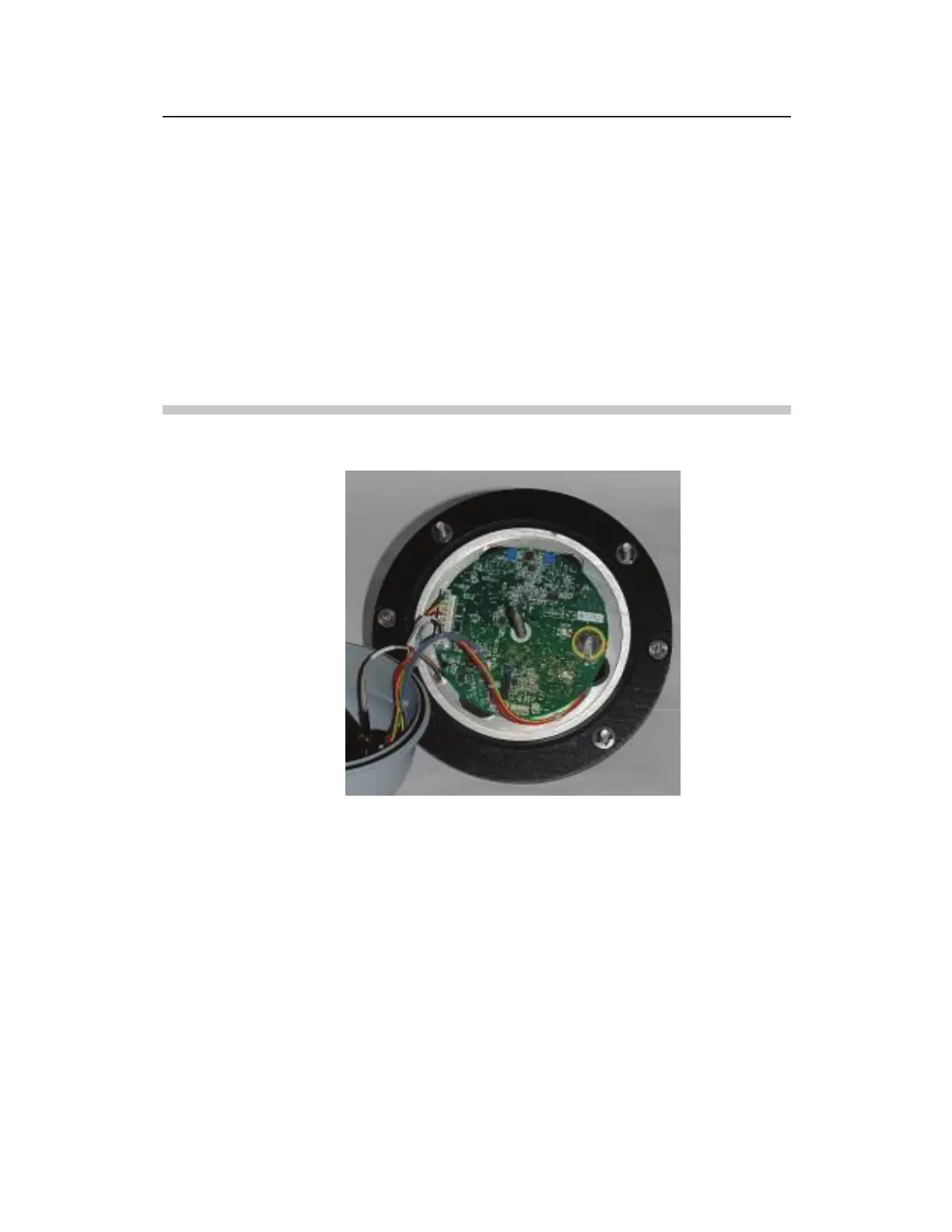

TRITON+ top with processor board attached
The processor board is the source of all monitor activity. The board is
responsible for all of the monitor's high-level functions, including the
following:
x Managing user communication with the monitor
x Controlling the timing at which the sensors fire (i.e., take readings)
x Retrieving and storing sensor data
x Maintaining the monitor time and date
x Performing power management
