2-16 ADS TRITON+ Manual
AV|Gated Sensor
The AV|Gated sensor (ADS p/n 8K-CS7-10-35) mounts at the
bottom center of the pipe and measures ultrasonic depth, average
velocity, pressure depth, and water temperature. The sensor
leverages dual depth technology and provides ultrasonic depth
measurements to full pipe and pressure depth measurements during
surcharge conditions.

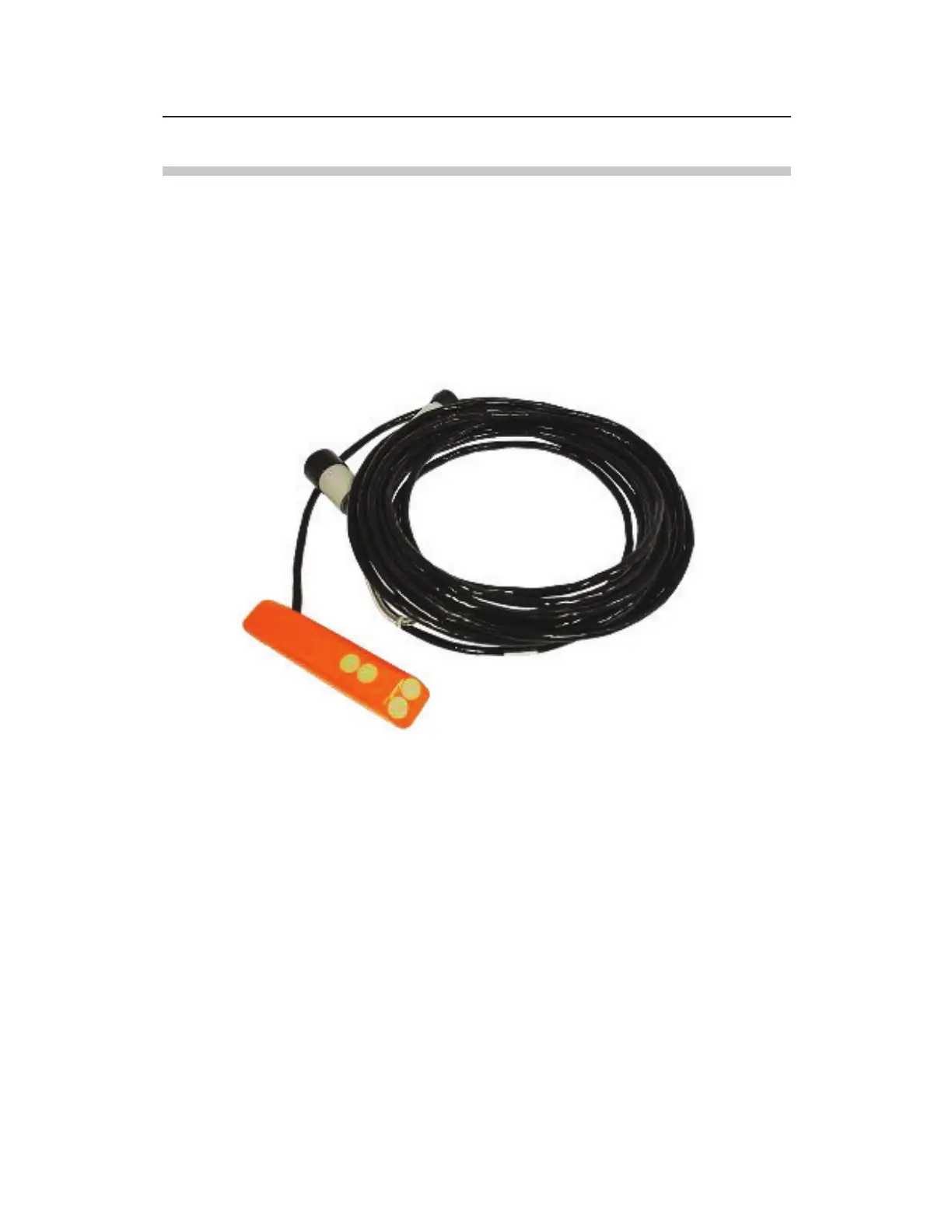

AV|Gated Sensor
Velocity Sensor
The AV|Gated sensor measures average velocity by measuring
velocity at multiple discrete points within the flow and the returning
reflected signal is processed using a digital signal processor from
which average velocity is calculated.
