6-6 ADS TRITON+ Manual
Mounting the XIO/XBUS to the designated surface or structure
Mounting the Recommended Power Supply
Note: For applications involving an XIO or XBUS, you
can disregard these instructions for mounting the power
supply because both the XIO and XBUS come from the
factory with the power supply pre-mounted to a DIN rail
in the XIO/XBUS enclosure.
Mount and secure the power supply in such a way that takes into
account the specific environment in which it will be located. For
outdoor installation, mount it inside a secure, weatherproof
enclosure (minimum NEMA IP66) that will provide the best
protection against the elements and excessive heat or cold. The
operating temperature range for the power supply is -40q to 158q F
XIO/XBUS

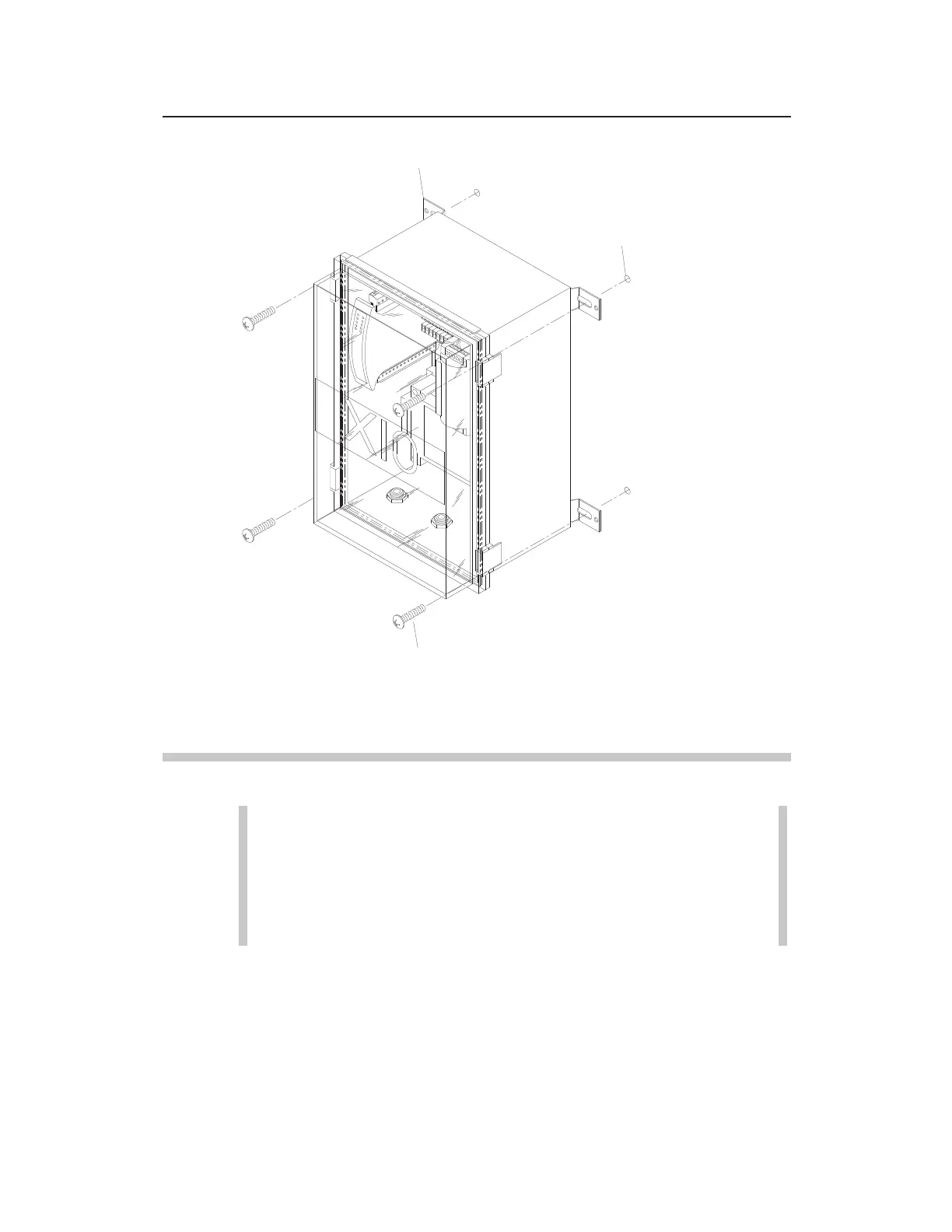

HOLES ON
VERTICAL SURFACE
MOUNTING SCREWS
To Next Page
